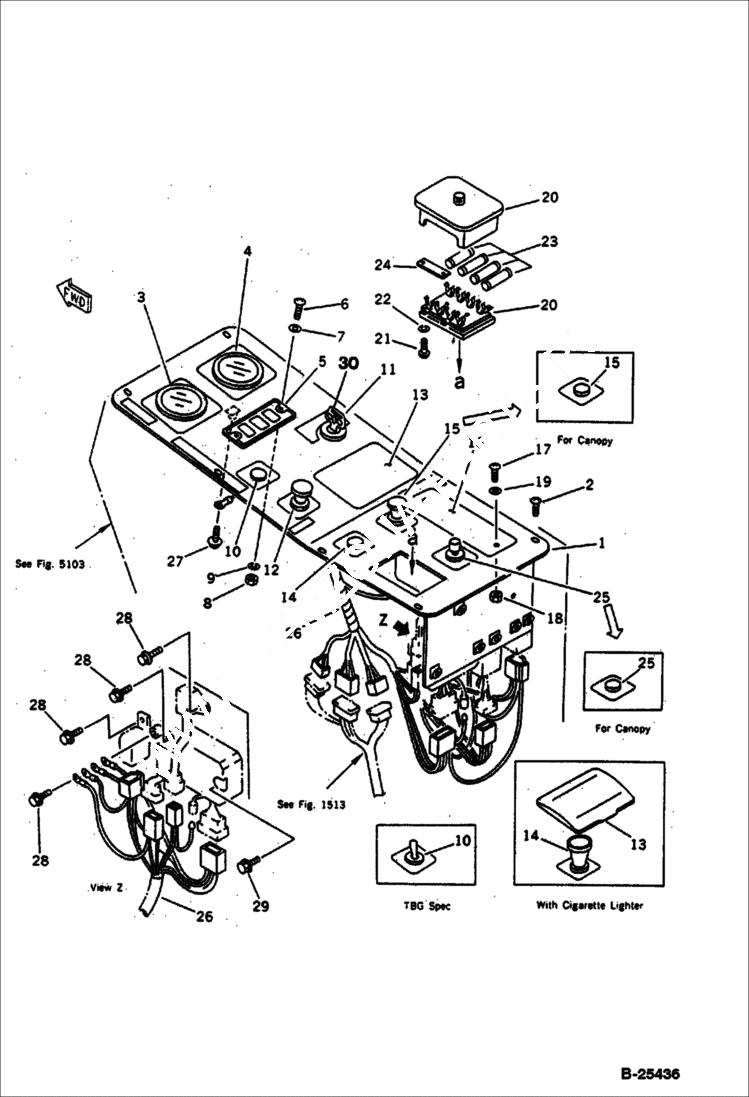

Запчасти Bobcat 76 ELECTRICAL SYSTEM (INSTRUMENT PANEL) ENGINE RELATED PARTS AND ELECTRICAL SYSTEM

1

PANEL Was 20N-06-49510

2

6638232

SCREW

3

6649157

SER.METER

4

6642181

GAUGE Water Temp.

4

6639899

GAUGE Water Temp. (TBG Spec.)

5

6649156

LAMP ASSY engine air heater

6

6637033

SCREW

7

6637144

WASHER

8

6637105

NUT

9

6637126

WASHER

10

6642440

PLUG

10

6638228

SWITCH Moment Limiter (TBG Spec.)

11

6637720

SWITCH Starting

12

6637717

SWITCH Lamp

13

6645924

PLATE

13

6638642

ASHTRAY

14

6637757

CAP

14

6637771

LIGHTER

15

6639266

SWITCH See Illustration ELECTRICAL SYSTEM (FOR CAB)/ 5451 Wiper

15

6644817

PLUG

16

6638236

SHIELD

17

6638232

SCREW

18

6637105

NUT

19

6642044

WASHER

20

6638546

BOX, FUSE

21

6637034

SCREW

22

6637126

WASHER

23

6637713

FUSE 20A

24

6637878

TERMINAL

25

6639264

SWITCH Heater

25

6644817

PLUG

26

WIRE ASSY Was 20N-06-49720

27

BOLT Was 01435-00610

28

BOLT Was 01435-00616

29

BOLT Was 01435-00625

30

6640722

KEY
