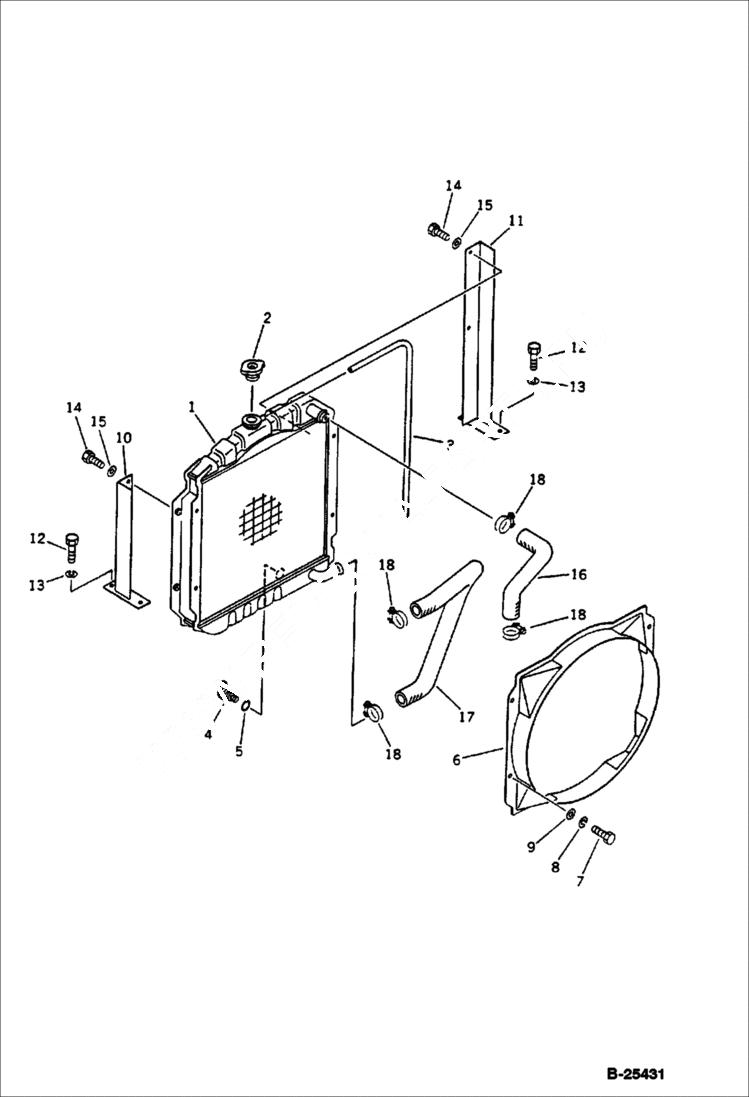

Запчасти Bobcat 76 RADIATOR AND PIPING ENGINE RELATED PARTS AND ELECTRICAL SYSTEM

1

6649904

CORE

1

OIL COOLER See Illustration HYDRAULIC BREAKER/ SC1087 - for hydraulic breaker

2

6637921

CAP

3

6645890

TUBE

4

6638219

COCK plug - drain

5

6637333

O-RING

6

6642417

SHROUD

7

6636957

BOLT

8

6637134

WASHER

9

6637146

WASHER

10

BRACKET LH - Was 20N-03-42530

11

BRACKET RH - Was 20N-03-42540

12

6636967

BOLT

13

6637135

WASHER

14

6636957

BOLT

15

6637156

WASHER

16

6638821

HOSE

17

6638822

ELBOW hose

18

6637617

CLAMP
