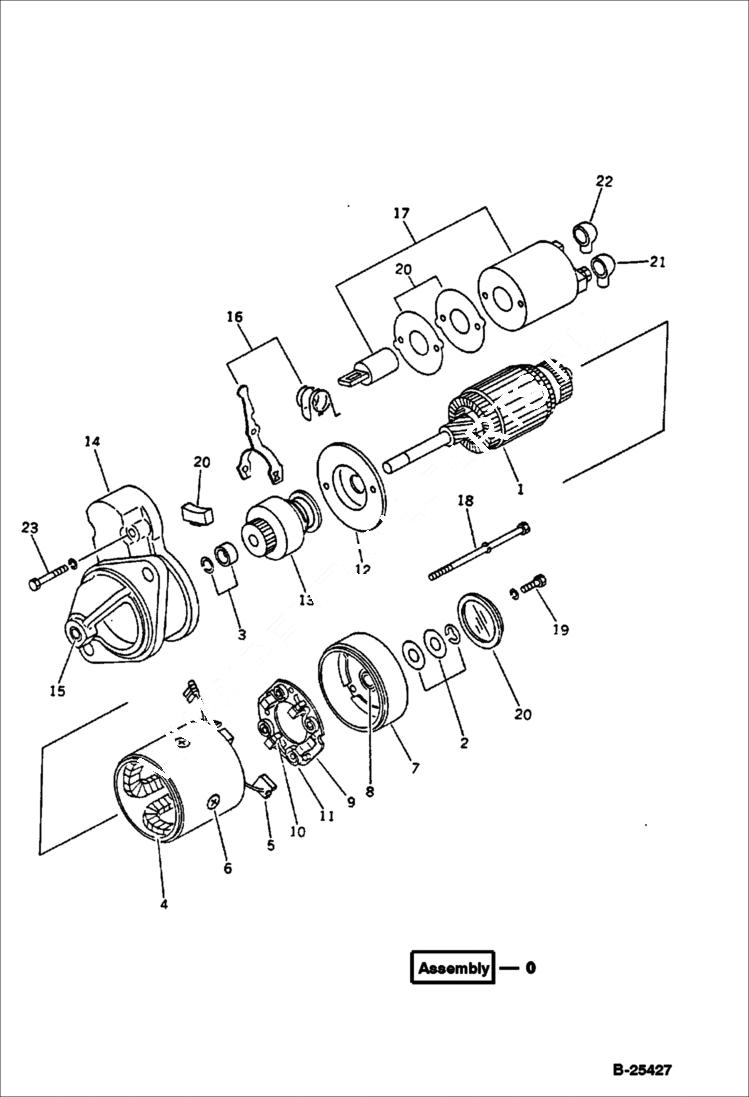

Запчасти Bobcat 76 STARTING MOTOR ELECTRICAL SYSTEM

0

6636607

MOTOR, ST

1

6661514

ARMATURE

2

WASHER SET Was YMX21148110

3

STOPPER SET Was YMX21147155

4

COIL ASSY field - Was YMX211482001

5

6662204

BRUSH(+)

6

SCREW Was YMX21147215

7

COVER ASSY Was YMX211423001

8

METAL Was YMX21145352

9

6661513

HOLDERASY brush

10

6662219

BRUSH(-)

11

SPRING Was YMX21144314

12

PLATE, CENTER Was YMX21143454

13

PINION ASSY Was YMX21145002

14

GEAR CASE Was YMX211486003

15

BUSHING Was YMX21144661

16

6659611

LEVER ASY shift

17

6659612

SWITCH magnetic

18

BOLT Was YMX21146815

19

SCREW Was YM26557-040122

20

DUST COVER ASSY Was YMX21143963

21

CAP Was YMX21144858

22

CAP Was YMX21145858

23

BOLT Was YM26116-060322
