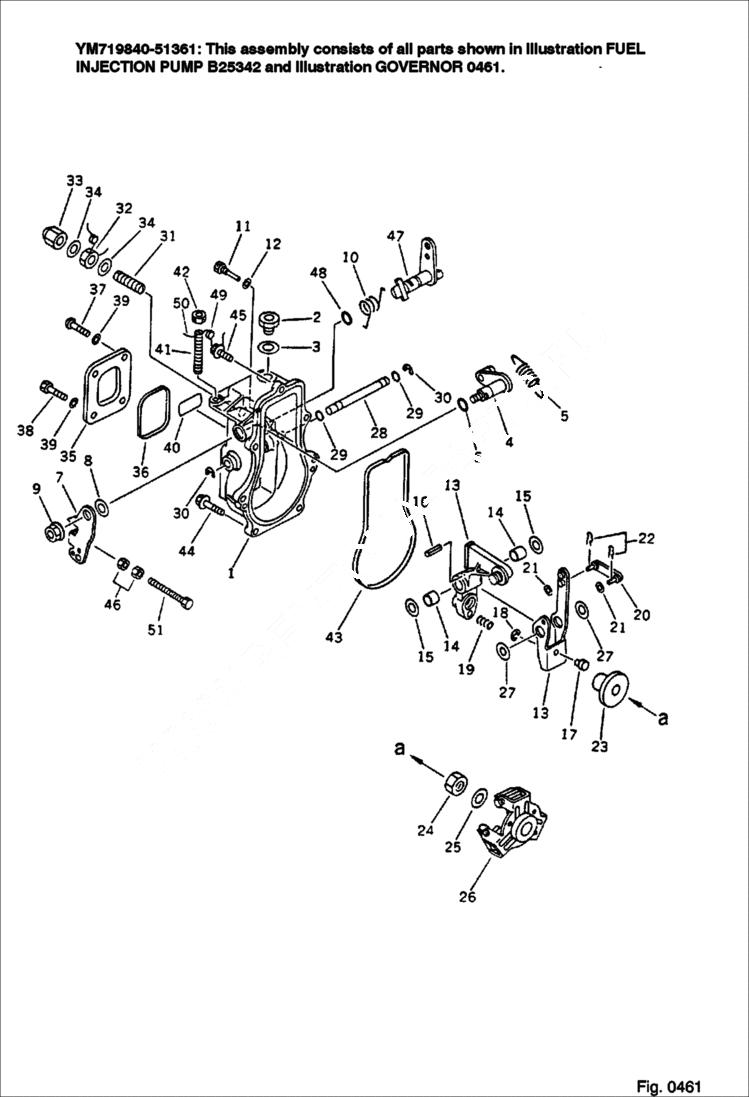

Запчасти Bobcat 76 GOVERNOR FUEL SYSTEM

1

INJECTION PUMP ASSY Was YM719840-51361

1

6636713

HOUSING

2

6641957

PLUG

3

6636777

WASHER

4

6636639

HOUSING

5

6636765

SPRING

6

6636728

O-RING

7

LEVER, CONTROL Was YM129100-61440

8

6636721

WASHER

9

6636884

NUT

10

6646171

SPRING

11

6636727

PIN stop lever

12

6636806

GASKET

13

6641927

LEVER

14

6636725

BUSHING

15

6636772

SHIM ASMBLY

16

6636793

PIN

17

6636726

SHIFTER

18

6636785

RING

19

6636642

SPRING fuel control

20

6636718

LINK L=28

20

6641882

LINK L=29

20

6641877

LINK L=30

20

6641878

LINK L=31

20

6641879

LINK L=32

20

6641880

LINK L=33

20

6641881

LINK L=34

21

6636774

WASHER

22

6636797

PIN

23

6636720

SLEEVE

24

6636899

LOCK NUT

25

6636790

WASHER

26

6636719

WEIGHT

27

6636723

WASHER

28

6636724

SHAFT

29

6636687

O-RING

30

6641946

RING, SNA

31

6636640

LIMITER screw

32

6636899

LOCK NUT

33

6636644

NUT

34

6636913

SEAL

35

6636715

COVER

36

6636716

PACKING

37

6646188

SCREW

38

6636717

BOLT

39

6636779

WASHER, SPRING

40

PLATE, CAUTION Was YM129130-51961

41

6636722

BOLT

42

6636617

LOCK NUT

43

6636714

PACKING

44

6636837

BOLT

45

6636729

BOLT

46

6636898

NUT

47

LEVER ASSY Was YM129255-61801

48

O-RING Was YM24311-000080

49

6636748

LEAD

50

6636800

WIRE

51

6641883

BOLT
