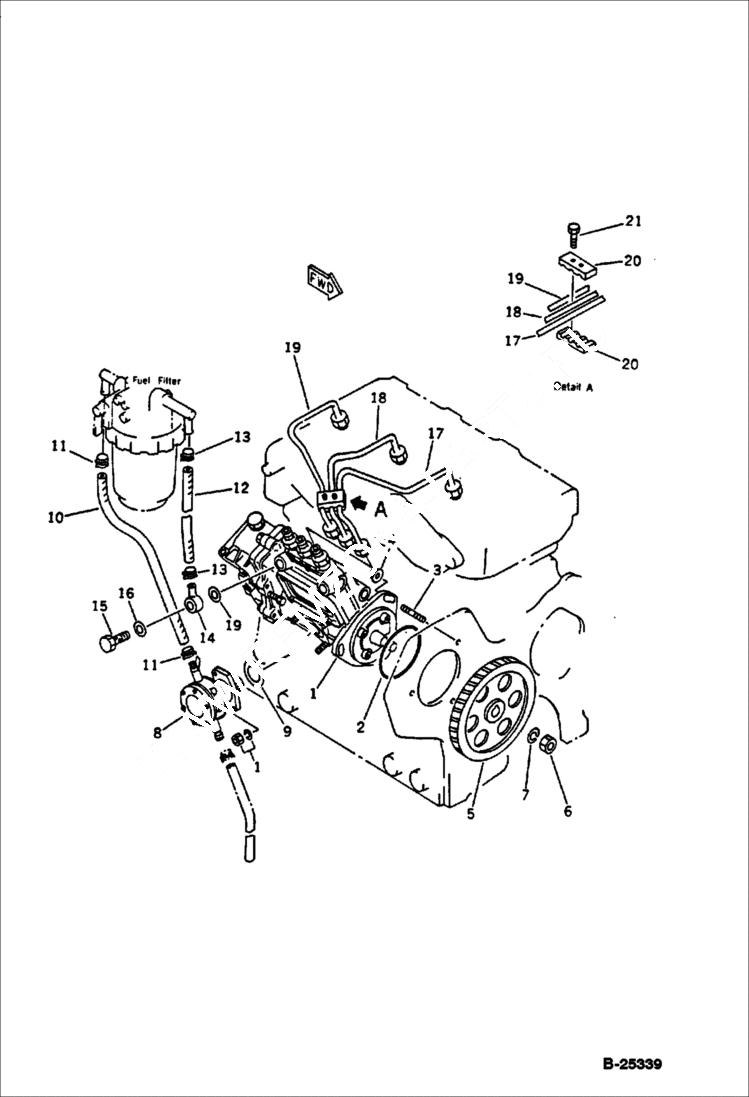

Запчасти Bobcat 76 FUEL INJECTION PUMP AND PIPING FUEL SYSTEM

1

INJECTION PUMP ASSY See Illustration FUEL INJECTION PUMP/ B25342 Was YM719840-51361

2

6636577

O-RING

3

6636564

STUD

4

6636884

NUT

5

6636665

GEAR

6

6636897

NUT

7

6636781

WASHER

8

6636635

PUMP, FEED

9

6636710

PACKING

10

6654046

HOSE

11

6636803

CLAMP

12

6654046

HOSE

13

6636803

CLAMP

14

6636307

CONNECTOR joint - ball

15

6641804

BOLT

16

6636327

PACKING

17

PIPE ASSY injection - Was YM119810-59800

17

6636521

PIPE injection - No. 1

18

6636520

PIPE injection - No. 2

19

6636519

PIPE injection - No. 3

20

6636674

CLIP

21

6636675

BOLT
