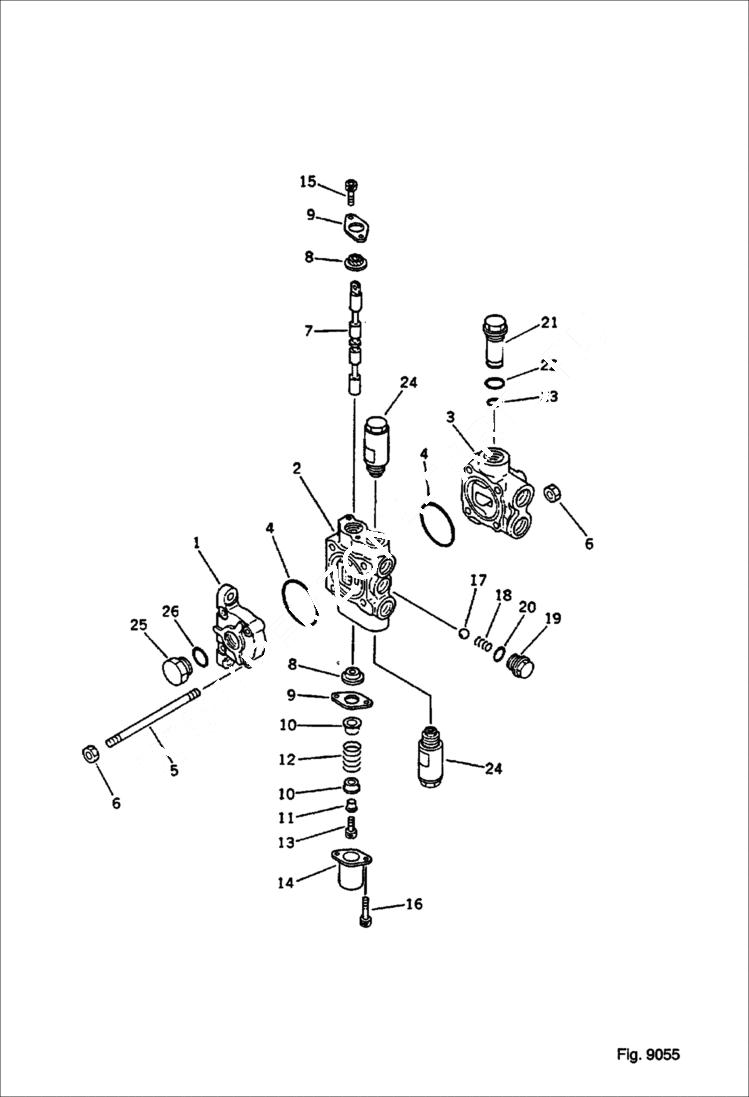

Запчасти Bobcat 76 1-SPOOL VALVE (FOR ADDITIONAL VALVE) USA SPEC. (OP) OPTIONAL PARTS, MARK PLATE

1

6640570

VALVE ASSY See Illustration VALVE/ 9056

1

COVER Was 709-32-11150

2

6640572

BLOCK

3

6640571

BLOCK

4

6637375

O-RING

5

6644840

STUD

6

6637107

NUT

7

6640573

SPOOL

8

6640575

SEAL

9

6640576

SHIELD

10

6640577

RETAINER

11

6640578

COLLAR

12

6640581

SPRING

13

6637051

BOLT

14

6640579

COVER

15

6637049

BOLT

16

6637050

BOLT

17

6637318

BALL

18

6640583

SPRING

19

6640582

PLUG

20

6637415

O-RING

21

6646050

COVER

22

6637411

O-RING

23

6637371

O-RING

24

6640557

VALVE suction & safety

25

6637437

PLUG

26

6637410

O-RING
