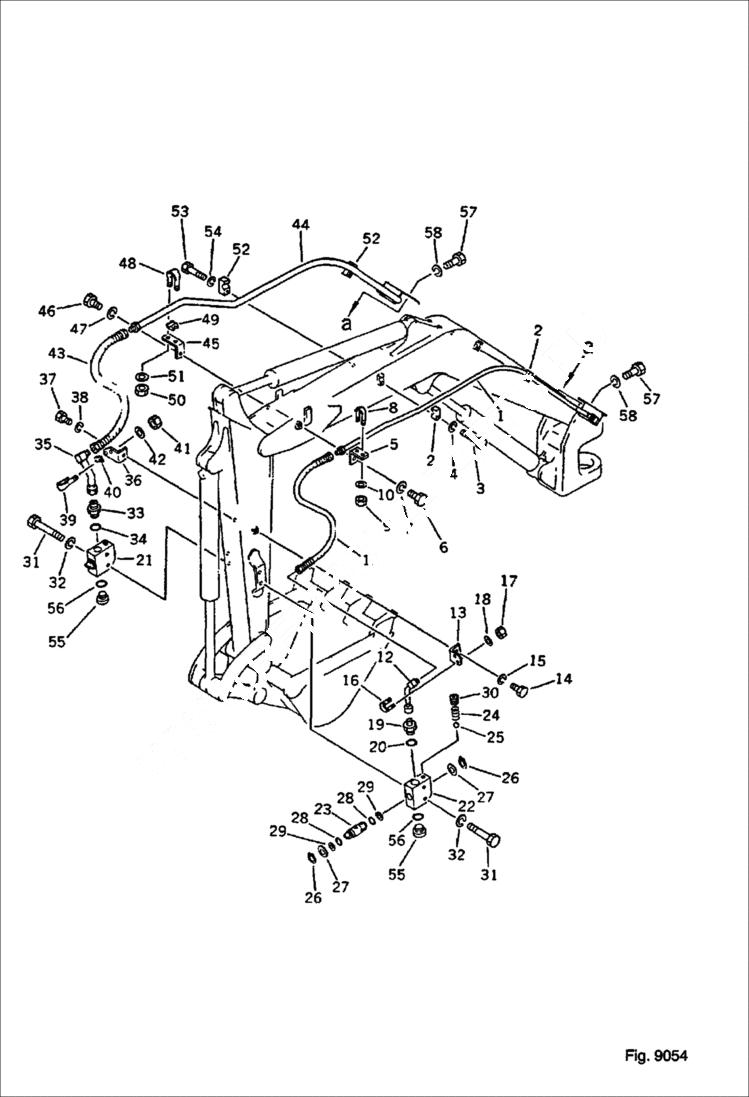

Запчасти Bobcat 76 HYDRAULIC PIPING (2/2) (FOR ADDITIONAL VALVE) USA SPEC. (OP) OPTIONAL PARTS, MARK PLATE

1

6638452

TUBE

2

6642390

CLAMP

3

6636961

BOLT

4

6637134

WASHER

5

6638514

BRACKET

6

6636966

BOLT

7

6637135

WASHER

8

6637636

CLIP

9

6637121

NUT

10

6637156

WASHER

11

6638453

HOSE

12

6638516

TUBE

13

6638518

BRACKET

14

6636957

BOLT

15

6637134

WASHER

16

6637636

CLIP

17

6637121

NUT

18

6637156

WASHER

19

6637853

NIPPLE

20

6637418

O-RING

21

6639864

VALVE ASSEMBLY

22

6645801

BODY

23

6646728

SPOOL

24

6643113

SPRING

25

6642071

BALL

26

6637220

RING, SNAP

27

6637161

WASHER

28

6637384

O-RING

29

6642090

RING, BACK-UP

30

6637445

PLUG

31

6636972

BOLT

32

6637135

WASHER

33

6639896

NIPPLE

34

6637418

O-RING

35

6638517

TUBE

36

6638519

BRACKET

37

6636957

BOLT

38

6637134

WASHER

39

6637637

CLIP

40

6637640

SEAT

41

6637122

NUT

42

6637157

WASHER

43

6638513

HOSE

44

6642694

TUBE

45

6638515

BRACKET

46

6636966

BOLT

47

6637135

WASHER

48

6637637

CLIP

49

6637640

SEAT

50

6637122

NUT

51

6637157

WASHER

52

6638510

CLAMP

53

6636961

BOLT

54

6637134

WASHER

55

6637438

PLUG

56

6637418

O-RING

57

6636967

BOLT

58

6637135

WASHER
