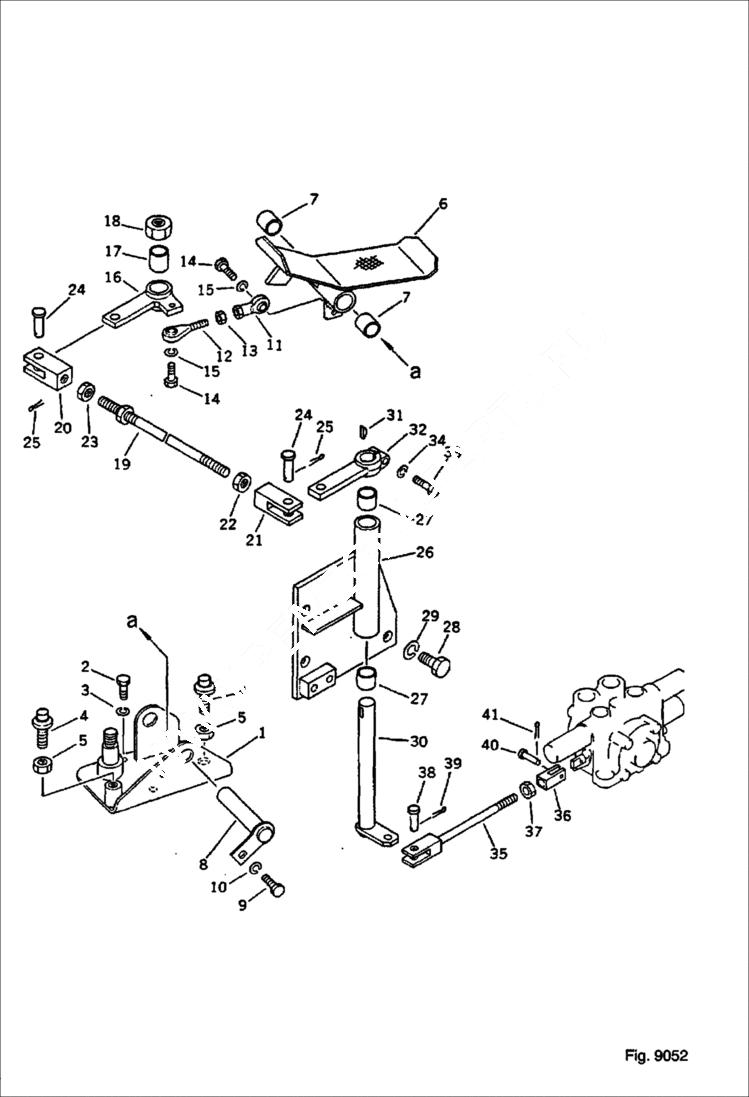

Запчасти Bobcat 76 CONTROL PEDAL (FOR ADDITIONAL VALVE) USA SPEC. (OP) OPTIONAL PARTS, MARK PLATE

1

6638289

BRACKET

2

6636958

BOLT

3

6637134

WASHER

4

6638923

BUMPER

5

6637109

NUT

6

6638511

PEDAL

7

6637746

BUSHING

8

6638512

SHAFT

9

6636959

BOLT

10

6637134

WASHER

11

6637309

ROD END

12

6637313

END

13

6637107

NUT

14

6636959

BOLT

15

6637134

WASHER

16

6638290

LEVER

17

6637747

BUSHING

18

6642038

NUT

19

ROD Was 04248-31264

20

6637265

YOKE

21

6637272

YOKE

22

6642031

NUT

23

6642033

NUT

24

6637261

PIN

25

6637199

PIN, COTTER

26

6642552

BRACKET

27

6637746

BUSHING

28

6636979

BOLT

29

6637136

WASHER

30

6638292

SHAFT

31

6637173

KEY

32

6638291

LEVER

33

6636960

BOLT

34

6637134

WASHER

35

6642061

ROD

36

6638709

YOKE

37

6637113

NUT

38

6637258

PIN

39

6642052

PIN, COTT

40

6637249

PIN

41

6642051

PIN, COTT
