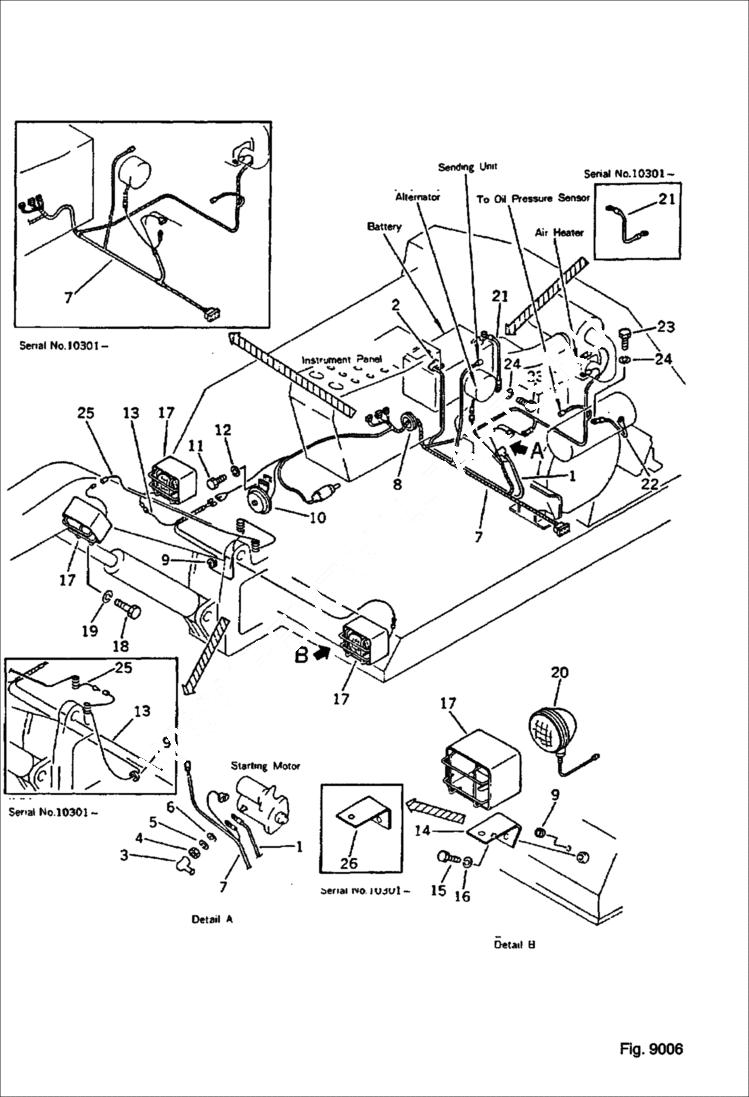

Запчасти Bobcat 76 ELECTRICAL SYSTEM USA SPEC. OPTIONAL PARTS, MARK PLATE

1

6642433

WIRE ASSY Komatsu S/N 10201-10213

1

6638233

WIRE ASSY Komatsu S/N 10214 & Abv.

2

6637711

CAP

3

6640840

CAP

4

6637107

NUT

5

6637134

WASHER

6

6640821

WASHER

7

WIRE Komatsu S/N 10201-10213 - Was 20N-06-49221

7

WIRE Komatsu S/N 10214-10267 - Was 20N-06-49222

7

WIRE Komatsu S/N 10268-10300 - Was 20N-06-49223

7

6638239

WIRE ASY Komatsu S/N 10301 & Abv.

8

6637705

GROMMET

9

6637700

GROMMET

10

6637726

HORN

11

6636957

BOLT

12

6637134

WASHER

13

WIRE Komatsu S/N 10201-10300 - Was 20N-06-49151

13

6638237

WIRE ASSY Komatsu S/N 10301 & Abv.

14

6644818

BRACKET Komatsu S/N 10201-10300

14

6644818

BRACKET Komatsu S/N 10301 & Abv.

15

6636979

BOLT

16

6637136

WASHER

17

6638632

COVER bracket

18

6636979

BOLT

19

6637136

WASHER

20

6637723

LAMP

20

6637722

BULB

20

6640842

LENS

21

6642434

WIRE ASY Komatsu S/N 10201-10300

21

6638234

WIRE ASY Komatsu S/N 10301 & Abv.

22

6638234

WIRE ASY

23

6636966

BOLT Komatsu S/N 10201-

23

6636966

BOLT Kumatsu S/N 10300 & Below

24

6637135

WASHER Komatsu S/N 10201-

24

6637135

WASHER Kumatsu S/N 10300 & Below

25

6638230

WIRE

26

6638231

BRACKET Komatsu S/N 10301 & Abv.
