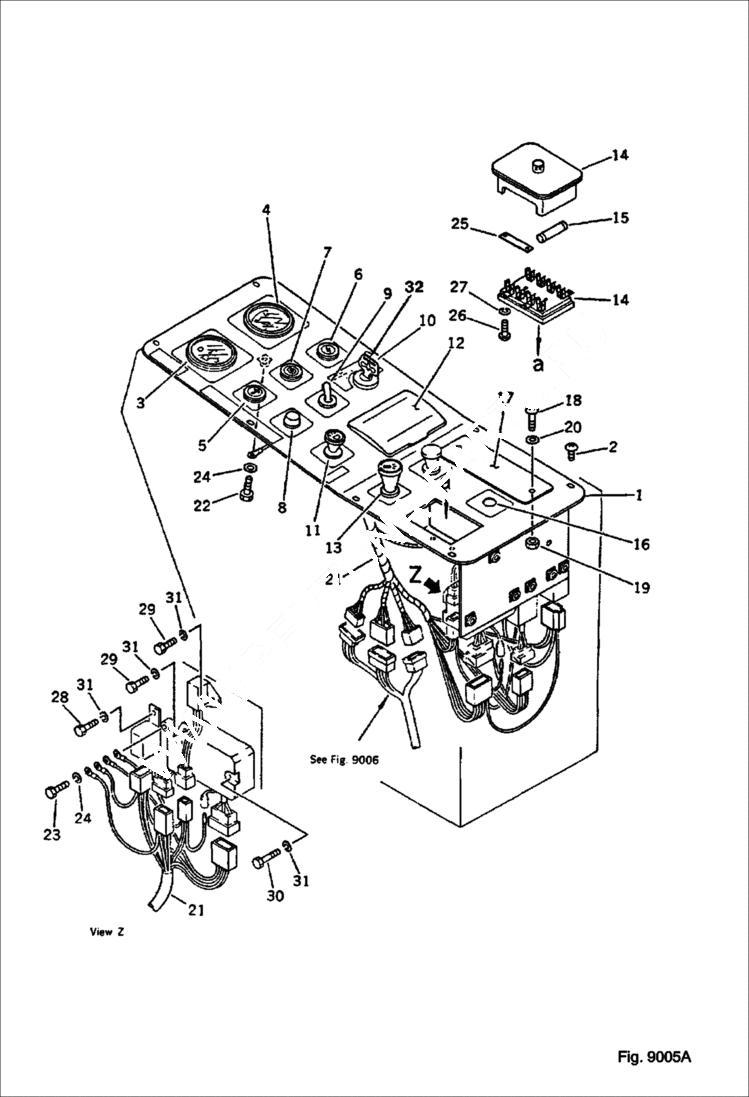

Запчасти Bobcat 76 INSTRUMENT PANEL USA SPEC. OPTIONAL PARTS, MARK PLATE

1

6638235

PANEL Komatsu S/N 10301 & Abv.

2

6638232

SCREW

3

6637732

GAUGE, SE meter - service

4

6639899

GAUGE water temp(TBG, USA SPEC.)

4

6642181

GAUGE water temp (KE,MKL SPEC.)

5

6638634

LAMP engine air heater

6

6637808

LIGHT battery charge

7

6637807

LIGHT, CA oil pressure

8

6637718

SWITCH horn

9

6638228

SWITCH moment limit (TBG, USA SPEC.)

9

6642440

PLUG (KE, MKL SPEC.)

10

6637720

SWITCH starting

11

6637717

SWITCH lighting

12

6638642

ASHTRAY

13

6637771

LIGHTER

14

6638546

BOX, FUSE

15

6637713

FUSE 20amp

16

6644817

PLUG (TBG, USA , KE SPEC)

16

6644817

PLUG MKL SPEC.)

17

6638236

SHIELD

18

6638232

SCREW

19

6637105

NUT

20

6642044

WASHER

21

6638240

WIRE ASY (TBG, USA SPEC)

21

6642436

WIRE (KE, MKL SPEC.)

22

6636952

BOLT Komatsu S/N 10301 & Abv.

23

6636953

BOLT Komatsu S/N 10201-10300

24

6637155

WASHER

25

6637878

TERMINAL

26

6637034

SCREW

27

6637126

WASHER

28

6636952

BOLT Komatsu S/N 10301 & Abv.

29

6636953

BOLT Komatsu S/N 10301 & Abv.

30

6642005

BOLT Komatsu S/N 10301 & Abv.

31

6637133

WASHER

32

6640722

KEY
