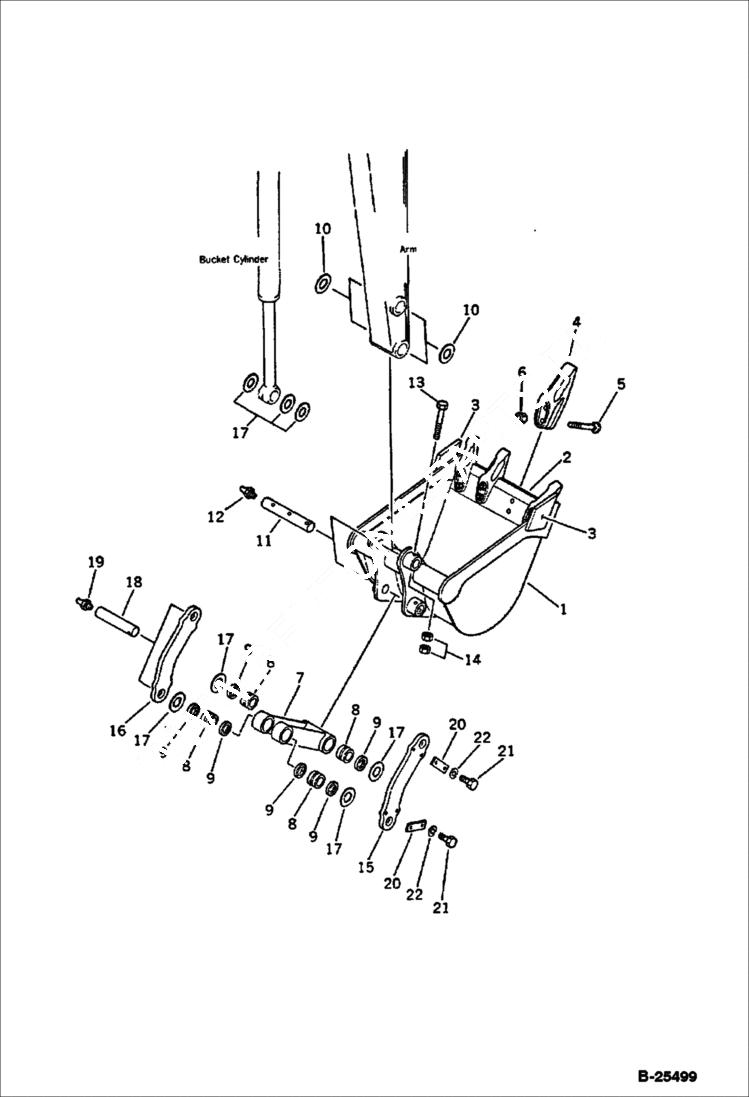

Запчасти Bobcat 76 BUCKET AND LINK WORK EQUIPMENT

1

6642714

BUCKET 450mm width, 0.1 cubic meters

2

6638496

EDGE (welded)

3

6638599

EDGE side (welded)

4

TOOTH NLA - Was 6637819 - A

5

6637168

BOLT

6

6640843

NUT Was 6637820 - A

7

6638499

LINK

8

6637520

BUSHING

9

6637531

SEAL, DUST

10

6638487

SHIM 1.00mm

11

6638488

PIN

12

6637430

FITTING

13

6645851

BOLT

14

6637108

NUT

15

6638497

LINK l. h.

16

6638498

LINK r.h.

17

6638487

SHIM 1.00mm

18

6638489

PIN

19

6637430

FITTING

20

6637241

LOCK

21

6636966

BOLT

22

6637135

WASHER
