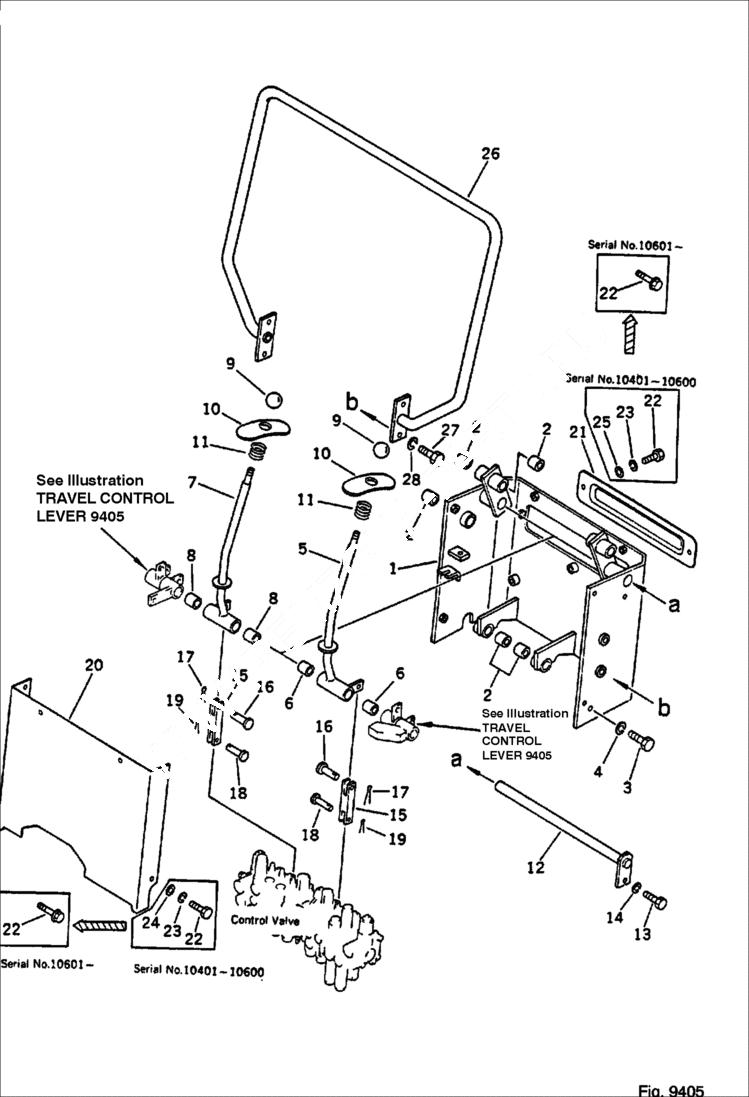

Запчасти Bobcat 56 TRAVEL CONTROL LEVER (FOR ADDITIONAL VALVE) SWING AND CONTROL SYSTEM

1

6642265

BRACKET ASSEMBLY Komatsu S/N 10401-10600

1

6642266

BRACKET ASSEMBLY Komatsu S/ N 10601 & Abv.

1

BRACKET Komatsu S/N 10401-10600 - Was 20M-43-39110

1

6638003

BRACKET Komatsu S/N 10601 & Abv.

2

6637746

BUSHING

3

6636967

BOLT

4

6637135

WASHER spring

5

6642243

LEVER ASSEMBLY l. h.

5

6637985

LEVER

6

6637746

BUSHING

7

6642244

LEVER ASSEMBLY r.h.

7

6637986

LEVER

8

6637746

BUSHING

9

6638565

KNOB

10

6639438

COVER

11

6637744

SPRING

12

6637979

SHAFT

13

6636958

BOLT

14

6637134

WASHER spring

15

6637988

YOKE

16

6637254

PIN

17

6637197

PIN, COTTER

18

6637247

PIN

19

6637197

PIN, COTTER

20

6638160

COVER

21

6642481

COVER

22

6636958

BOLT Komatsu S/N 10401-10600

22

6637066

BOLT Komatsu S/N 10601 & Abv.

23

6637134

WASHER spring - Komatsu S/N 10401-10600

24

6637156

WASHER Komatsu S/N 10401-10600

25

6640821

WASHER Komatsu S/N 10401-10600

26

6642252

STAY (KE, USA SPEC.) - Komatsu S/N 10401-10600

26

6637989

STAY (KE, USA SPEC.) - Komatsu S/N 10601 & Abv.

26

6642267

STAY (TBG SPEC.) - Komatsu S/N 10401-10600

26

6642268

LEVER (TBG SPEC) - Komatsu S/N 10601 & Abv.

27

6636966

BOLT

28

6637135

WASHER spring
