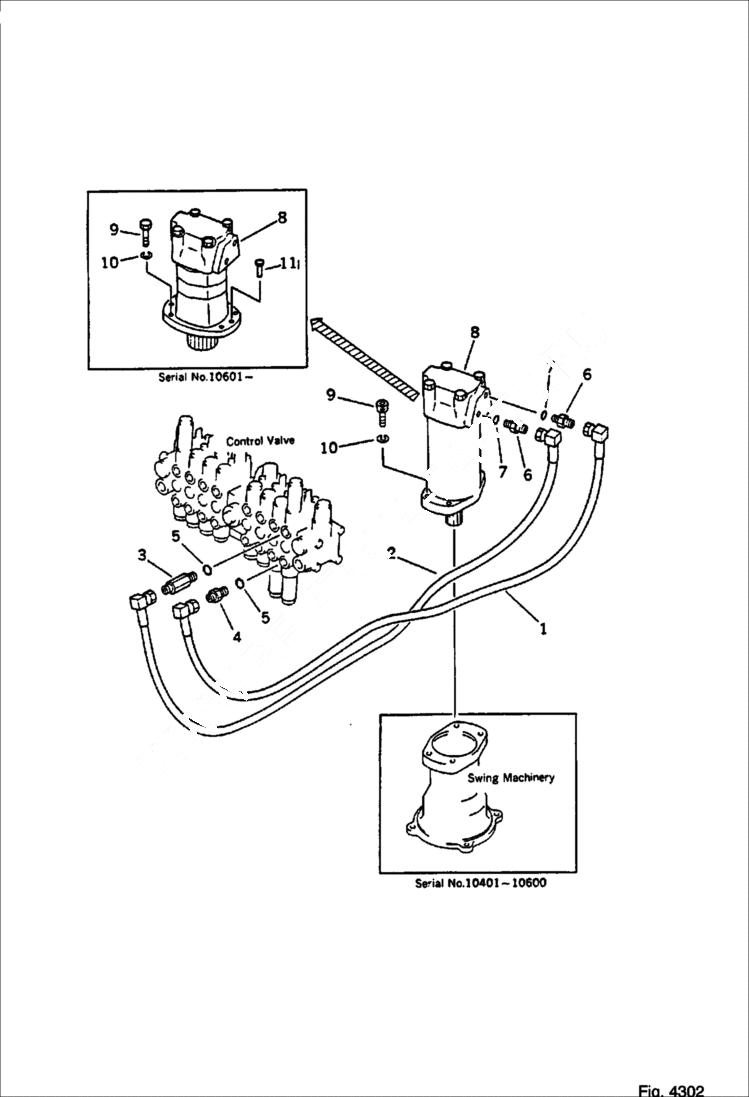

Запчасти Bobcat 56 HYDRAULIC PIPING (VALVE TO/FROM SWING MOTOR) SWING AND CONTROL SYSTEM

1

6642348

HOSE Komatsu S/N 10401-10600

1

6638097

HOSE Komatsu S/N 10601 & Abv.

2

6642349

HOSE Komatsu S/N 10401-10600

2

6638098

HOSE Komatsu S/N 10601 & Abv.

3

6638101

NIPPLE

4

6638398

NIPPLE

5

6637415

O-RING

6

6638394

NIPPLE

7

6637372

O-RING

8

6642302

MOTOR, SWING assembly - Komatsu S/N 10401-10600

8

6638043

MOTOR ASY swing - Komatsu S/N 10601 & Abv.

9

6645857

BOLT Komatsu S/N 10401-10600

9

6636970

BOLT Komatsu S/N 10601 & Abv.

10

6637136

WASHER spring - Komatsu S/N 10401-10600

10

6637135

WASHER spring - Komatsu S/N 10601 & Abv.

11

6642211

PIN dowel - Komatsu S/N 10601 & Abv.
