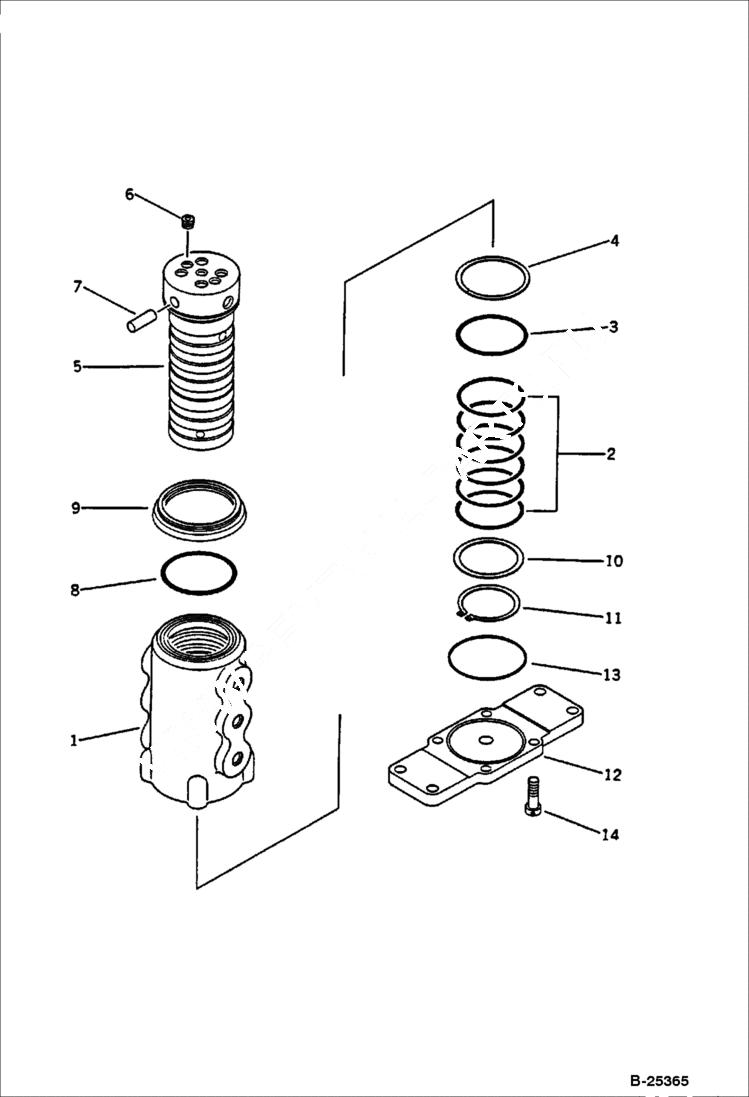

Запчасти Bobcat 56 SWIVEL JOINT TRAVEL AND FINAL DRIVE

1

6642316

JOINT, SW assembly - swivel

1

ROTOR Was 20M-60-24120

2

6638022

O-RING

3

6637375

O-RING

4

6638025

RING back-up

5

SHAFT Was 20M-60-24110

6

6638026

PLUG

7

PIN Was 20M-60-24180

8

6637344

O-RING

9

6639023

SHEET dust seal

10

THRUST WASHER Was 20M-60-14141

11

6637225

RING, SNAP

12

FLANGE Was 20M-60-24130

13

6638024

O-RING

14

6637052

BOLT
