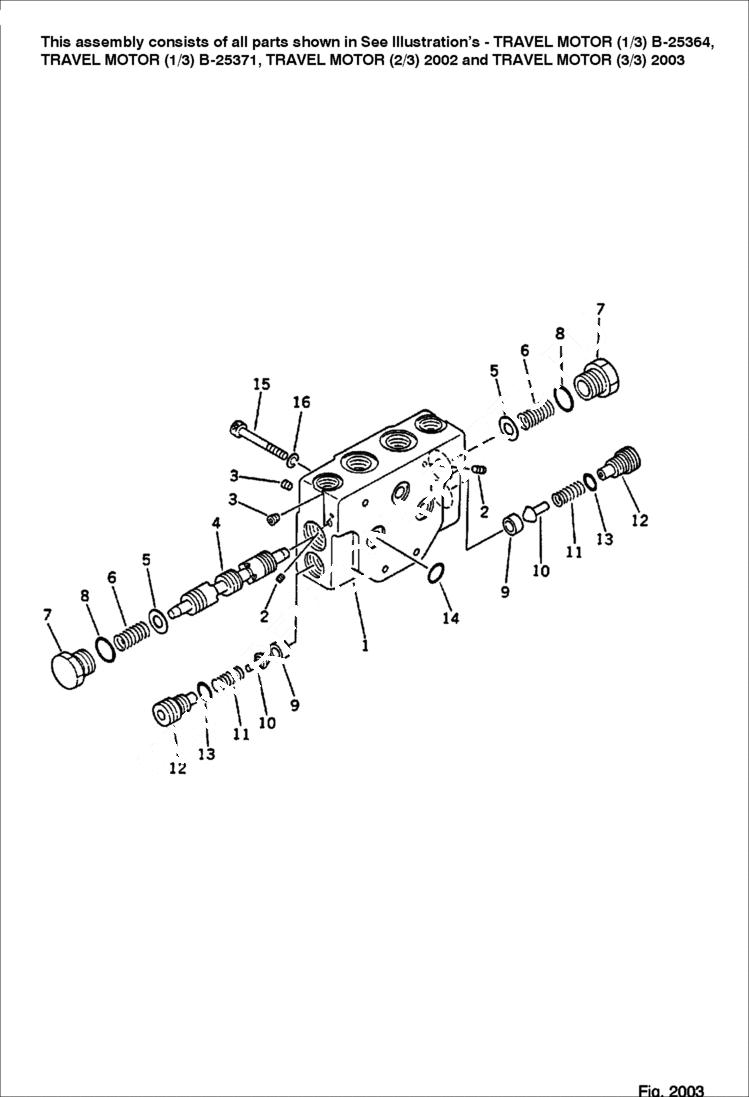

Запчасти Bobcat 56 TRAVEL MOTOR (3/3) TRAVEL AND FINAL DRIVE

1

6638027

MOTOR See Illustration TRAVEL MOTOR (1/3)/ B25364 See Illustration TRAVEL MOTOR (2/3)/ 2002 See Illustration TRAVEL MOTOR (1/3)/ B25371 assembly - travel

1

6638380

VALVE ASY brake

1

6642627

BODY

2

6638366

CHOKE

3

6638367

PLUG

4

6642628

SPOOL

5

6638382

RING

6

6638361

SPRING

7

6638359

PLUG

8

6637372

O-RING

9

6638365

SEAT

10

6638360

POPPET

11

6638363

SPRING

12

6638364

PLUG

13

6637369

O-RING

14

6637371

O-RING

15

6637060

BOLT

16

6637133

WASHER spring
