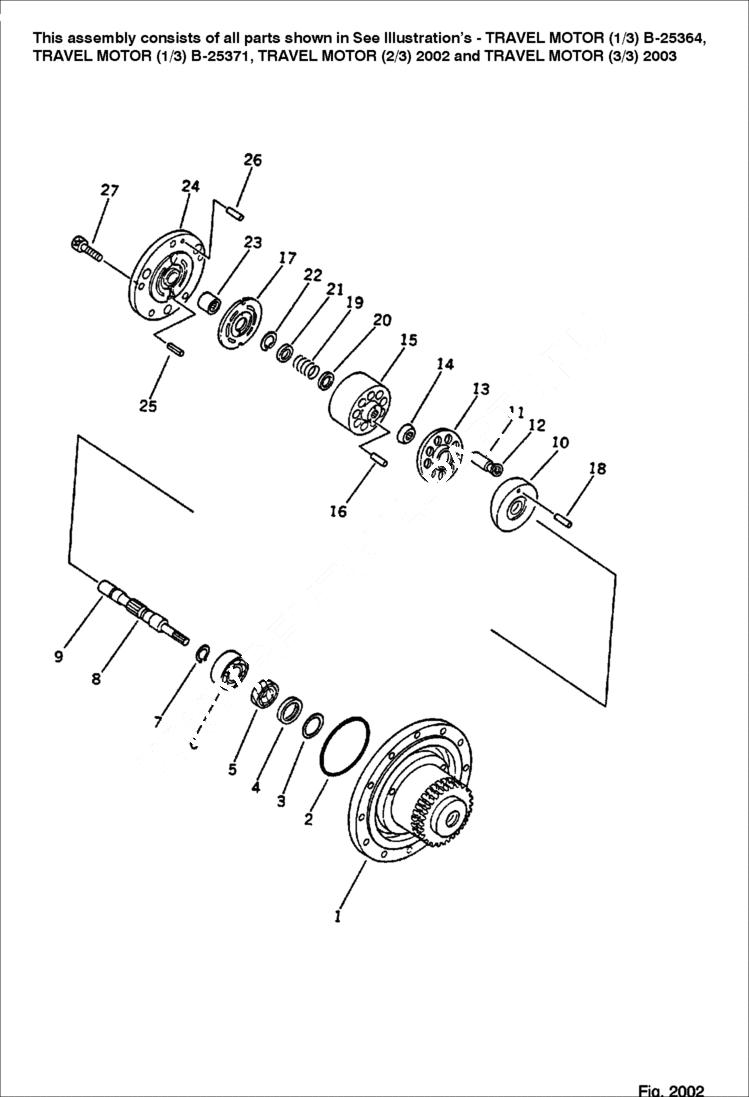

Запчасти Bobcat 56 TRAVEL MOTOR (2/3) TRAVEL AND FINAL DRIVE

1

6638027

MOTOR See Illustration TRAVEL MOTOR (1/3)/ B25364 See Illustration TRAVEL MOTOR (3/3)/ 2003 See Illustration TRAVEL MOTOR (1/3)/ B25371 assembly - travel

1

6638031

HOUSING body

2

6637381

O-RING

3

6638353

RING support

4

6638358

RING back-up

5

6638378

SEAL, OIL

6

6637321

BEARING

7

6637220

RING, SNAP

8

6638041

SHAFT ASY sub

8

6642617

SHAFT

9

6638379

RACE inner

10

6638042

KIT cylinder barrel assembly

10

6642625

PLATE swash

11

6642621

PISTON

12

6642622

SHOE

13

6642623

HOLDER shoe

14

6642624

HOLDER barrel

15

6642619

BARREL cylinder

16

6638356

PIN

17

6642620

PLATE valve

18

6637180

PIN

19

6638357

SPRING

20

6638355

RETAINER

21

6638354

COLLAR

22

6637229

RING, SNAP

23

6638381

BEARING needle

24

6638351

HOUSING body

25

6637187

PIN, ROLL spring

26

6637174

PIN, DOWE

27

6637061

BOLT
