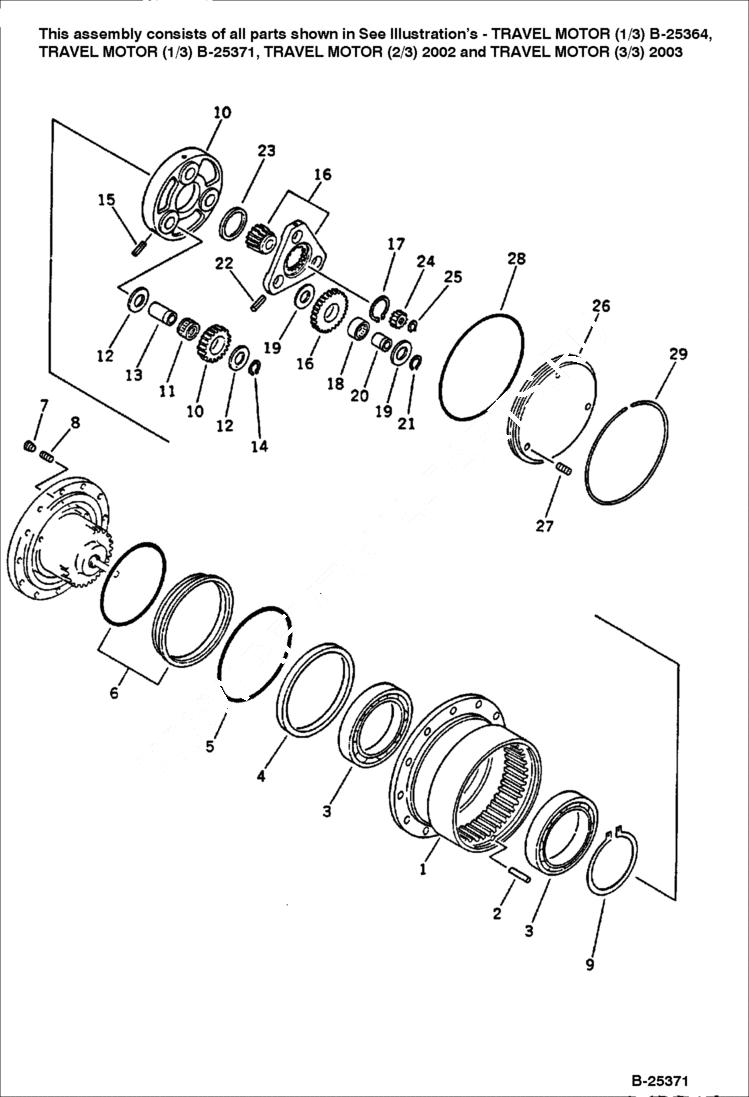

Запчасти Bobcat 56 TRAVEL MOTOR (1/3) TRAVEL AND FINAL DRIVE

1

6638027

MOTOR See Illustration TRAVEL MOTOR (1/3)/ B25364 See Illustration TRAVEL MOTOR (3/3)/ 2003 See Illustration TRAVEL MOTOR (2/3)/ 2002 assembly - travel

1

6638029

HOUSING A body sub assembly

2

6638030

PIN

3

6638369

BEARING

4

6638347

RING seal

5

6638370

O-RING

6

6638371

SEAL ASSY floating

7

6637446

PLUG

8

6638349

SCREW

9

6637237

RING, SNAP

10

6638032

CARRIER sub assembly - Komatsu S/N 10695 & Abv.

11

6642317

NEEDLE sub assembly - Komatsu S/N 10695 & Abv.

11

6642319

NEEDLE Komatsu S/N 10695 & Abv.

12

6642323

PIN Komatsu S/N 10695 & Abv.

13

6637220

RING, SNAP Komatsu S/N 10695 & Abv.

14

6637183

PIN, ROLL spring - Komatsu S/N 10695 & Abv.

15

6638033

CARRIER A sub assembly - Komatsu S/N 10695 & Abv.

16

6637223

RING, SNAP

17

6638028

NEEDLE sub assembly - Komatsu S/N 10695 & Abv.

17

6642320

NEEDLE Komatsu S/N 10695 & Abv.

18

6638034

WASHER thrust - Komatsu S/N 10695 & Abv.

19

6638035

PIN

20

6638036

COLLAR thrust

21

6638037

GEAR

22

6638375

RING snap

23

6638038

COVER

24

6638039

PLUG

25

6638370

O-RING

26

6638040

RING snap
