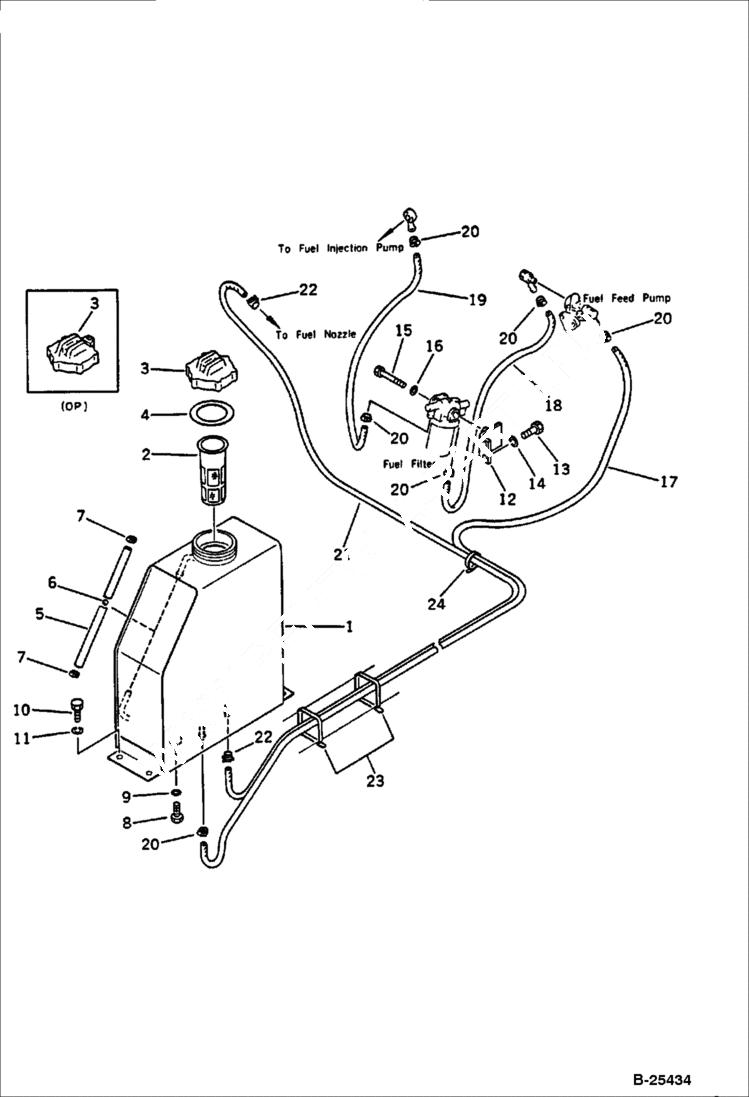

Запчасти Bobcat 56 FUEL TANK AND PIPING ENGINE RELATED PARTS AND ELECTRICAL SYSTEM

1

6642200

FUEL TANK assembly - Komatsu S/N 10401-10600

1

FUEL TANK ASS'Y Komatsu S/N 10601 & Abv. - Was 20M-04-31101

1

TANK, FUEL Komatsu S/N 10401-010600 - Was 20M-04-3111

1

6637926

TANK fuel - Komatsu S/N 10601 & Abv.

2

6637474

SCREEN strainer

3

6637470

CAP

3

6637483

CAP (op)

4

6637471

GASKET

5

6637611

TUBE sight gauge

6

6638544

FLOAT ball

7

6637621

CLAMP

8

6637476

BOLT plug

9

6637408

O-RING

10

6636966

BOLT Komatsu S/N 10401-10600

10

6636958

BOLT Komatsu S/N 10601 & Abv.

11

6637135

WASHER spring - Komatsu S/N 10401-10600

11

6637134

WASHER spring - Komatsu S/N 10601 & Abv.

12

6637927

BRACKET

13

6636966

BOLT

14

6637135

WASHER spring

15

6642009

BOLT

16

6637146

WASHER

17

6637928

HOSE

18

6637931

HOSE

19

6637929

HOSE

20

6637620

CLAMP

21

6637930

HOSE

22

6642115

CLAMP

23

6637683

BAND

24

6637680

BAND
