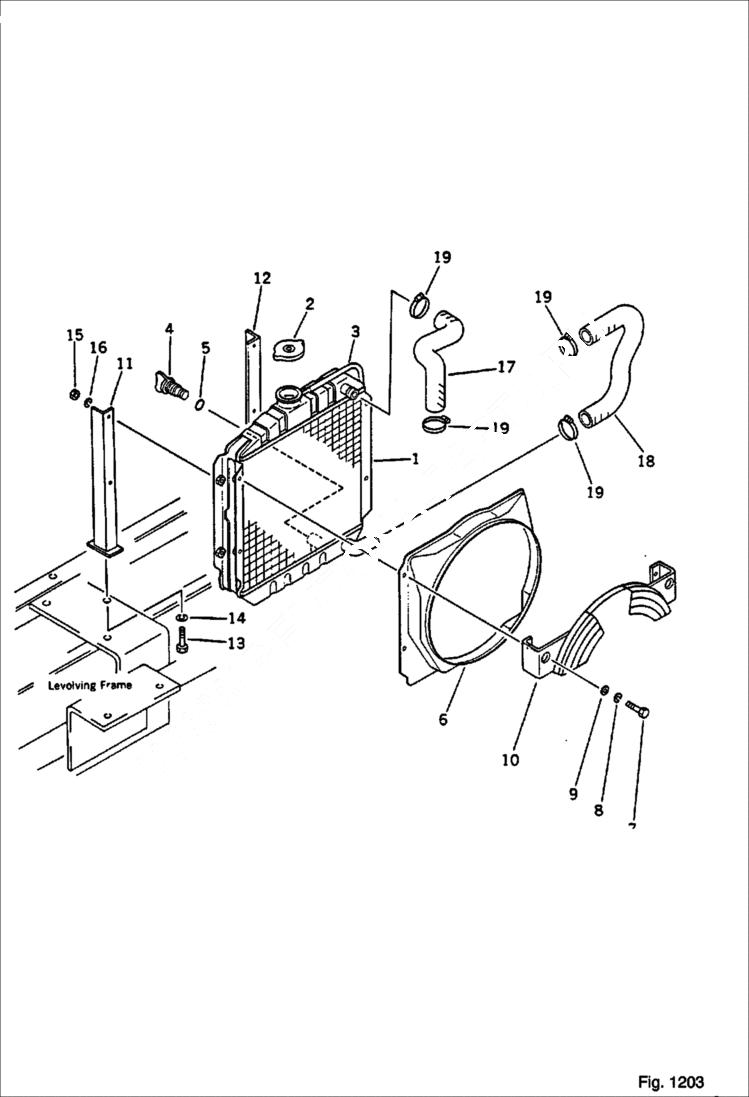

Запчасти Bobcat 56 RADIATOR AND PIPING ENGINE RELATED PARTS AND ELECTRICAL SYSTEM

1

6637920

RADIATOR assembly

1

6649904

CORE

2

6637921

CAP core

3

6640850

HOSE

4

6638219

COCK drain

5

6637333

O-RING

6

6642195

SHROUD

7

6642002

BOLT

8

6637128

WASHER spring

9

6637156

WASHER

10

6637923

NET

11

6642198

BRACKET Komatsu S/N 10601 & Abv.

12

6642199

BRACKET Komatsu S/N 10601 & Abv.

13

6636958

BOLT Komatsu S/N 10601 & Abv.

14

6637134

WASHER spring - Komatsu S/N 10601 & Abv.

15

6637107

NUT

16

6637134

WASHER spring

17

6637134

WASHER

18

6637925

HOSE

19

6637617

CLAMP
