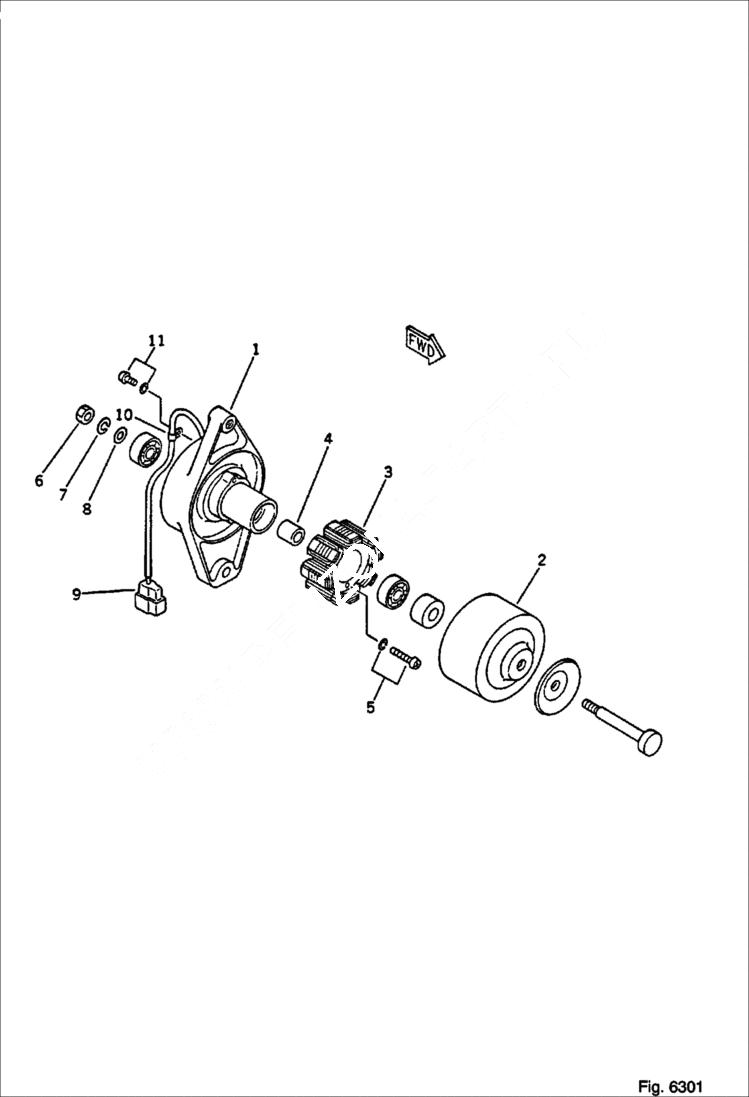

Запчасти Bobcat 56 ALTERNATOR ELECTRICAL SYSTEM

1

6636677

ALTERNATOR assembly

1

6636244

SHIELD AS plate assembly

1

6636245

SHIELD plate

2

6636241

FLYWHEEL

3

6636246

STATOR ASSEMBLY

4

6636240

HUB collar

5

6636248

SCREW ASSEMBLY

6

6636243

NUT

7

6636239

WASHER spring

8

6636242

WASHER

9

6636238

COUPLER

10

6636237

CLAMP

11

6636247

SCREW assembly
