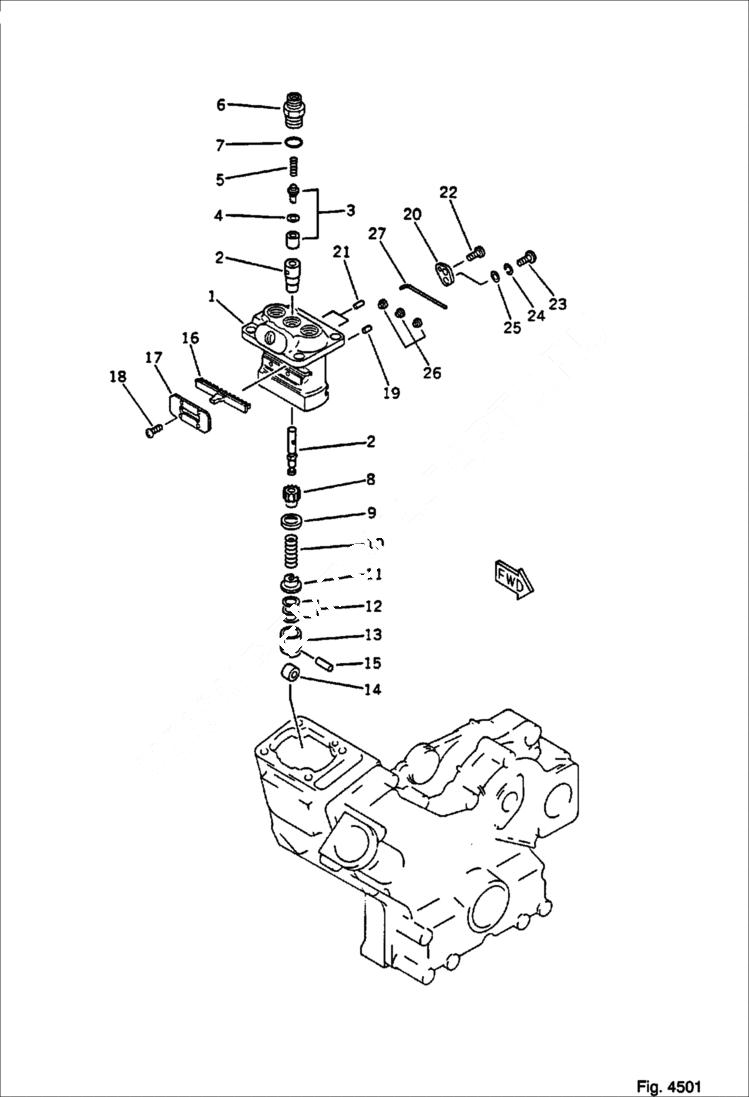

Запчасти Bobcat 56 FUEL INJECTION PUMP FUEL SYSTEM

1

6636925

PUMP, FUEL assembly - injection

2

6636392

BARREL plunger

3

6636400

VALVE delivery

4

6636402

PACKING gasket

5

6636337

SPRING

6

6636401

RETAINER holder

7

6636403

O-RING

8

6636406

GEAR pinion

9

6636393

SEAT

10

6636395

SPRING

11

6636394

SEAT

12

6636399

SHIM assembly

13

6636396

TAPPET guide

14

6636397

ROLLER

15

6636398

PIN

16

6636475

RACK

17

6636476

RETAINER

18

6636833

SCREW

19

6636410

PIN

20

6636407

SHIELD plate

21

6636409

PIN

22

6636408

SCREW adjust

23

6636892

SCREW

24

6636778

WASHER spring

25

6636776

WASHER

26

6636404

SHIM piece

27

6636405

PIN lock
