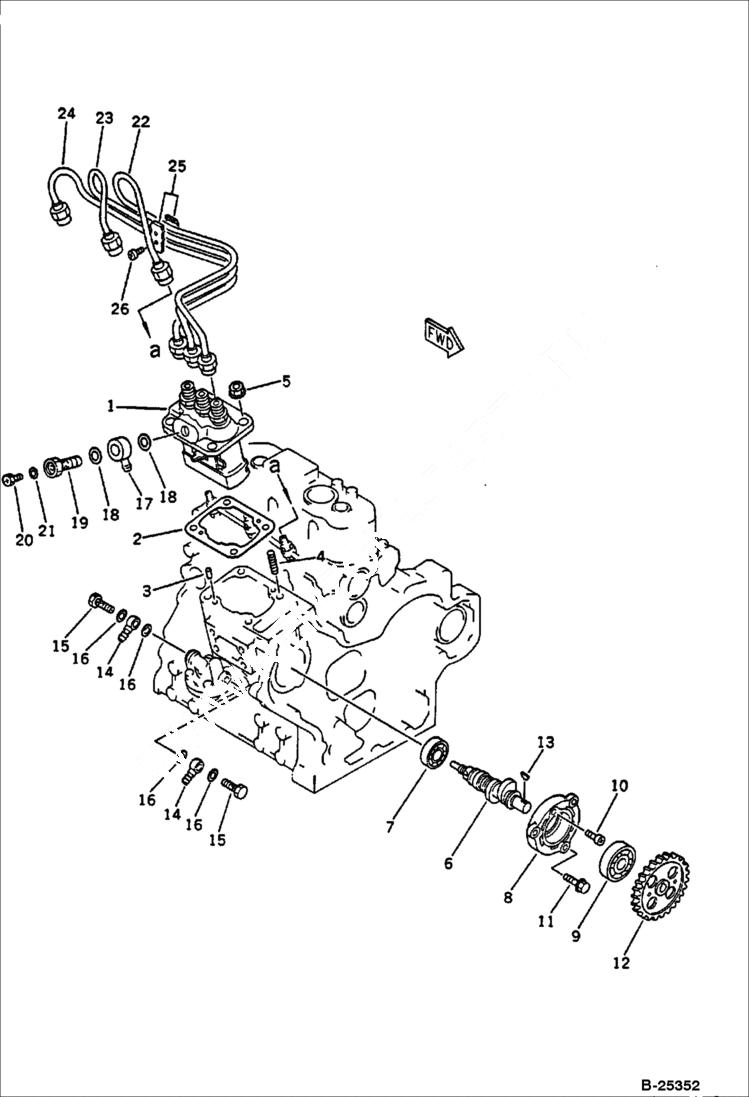

Запчасти Bobcat 56 FUEL INJECTION PUMP AND PIPING FUEL SYSTEM

1

6636925

PUMP, FUEL assembly, injection

2

6636361

SHIM assembly

3

6636794

PIN spring

4

6636564

STUD

5

6636773

NUT

6

6636462

CAM

7

6636819

BEARING

8

6636458

SHIELD case

9

6636817

BEARING

10

6636893

SCREW

11

6636836

BOLT

12

6636467

GEAR

13

6636801

KEY

14

6636331

CONNECTOR joint

15

6636338

BOLT joint

16

6636808

PACKING gasket

17

6636307

CONNECTOR joint

18

6636327

PACKING gasket

19

6636319

BOLT joint

19

6636320

BOLT

20

PLUG NLA - Was 6636586 - A

21

6636910

PACKING gasket

22

6636420

TUBE pipe, injection, No. 1

23

6636419

TUBE pipe, injection, No. 2

24

6636418

TUBE pipe, injection, No. 3

25

6636674

CLIP clamp assembly

26

6636675

BOLT
