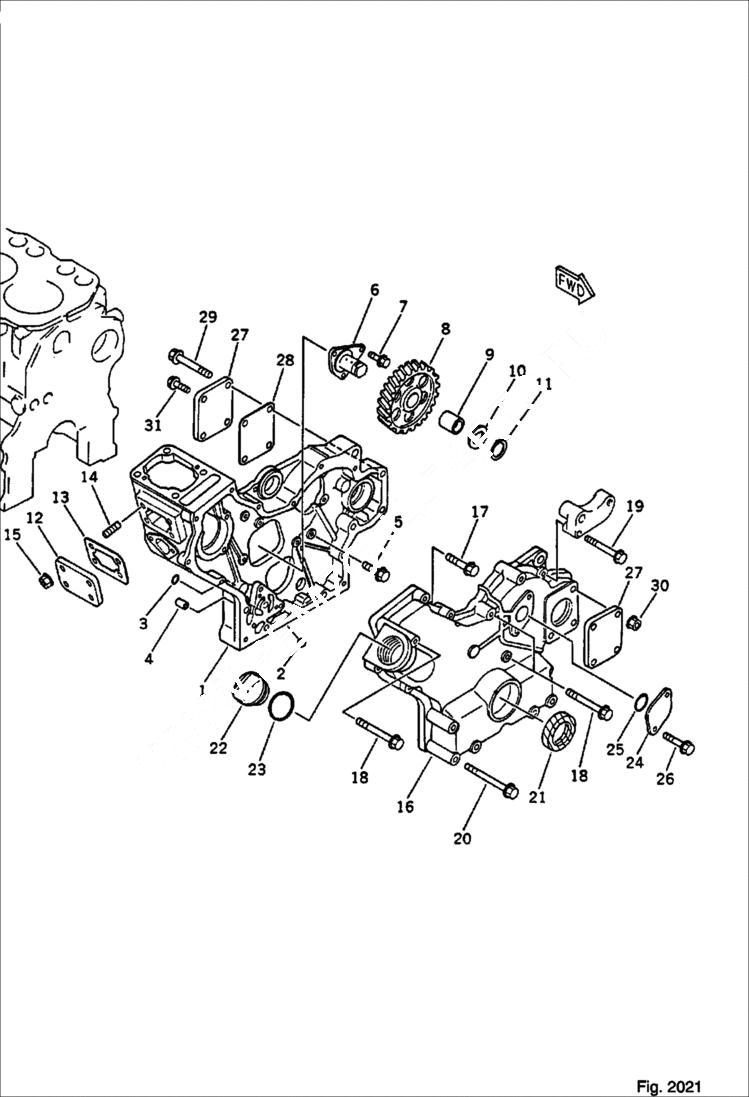

Запчасти Bobcat 56 GEAR CASE AND FRONT COVER CYLINDER BLOCK

1

6636451

HOUSING case, gear

2

6636452

PLUG

3

6636820

O-RING

4

6636459

PIPE

5

6636836

BOLT

6

6636466

SHAFT

7

6636835

BOLT

8

6636390

GEAR ASSY idler

9

6636389

BUSHING

10

6636465

SEAT plate

11

6636783

RING snap

12

6636454

COVER

13

6636455

PACKING gasket

14

6636456

BOLT

15

6636883

NUT

16

6636453

COVER front

17

6636839

BOLT

18

6636843

BOLT

19

6636841

BOLT

20

6636845

BOLT

21

6636360

SEAL, OIL front

22

6636595

CAP

23

6636563

O-RING

24

6636544

COVER

25

6636828

O-RING

26

BOLT Was YM26106-060182

27

6636601

COVER

28

GASKET Was YM124240-01882

29

6636859

BOLT

30

6636884

NUT

31

6636847

BOLT
