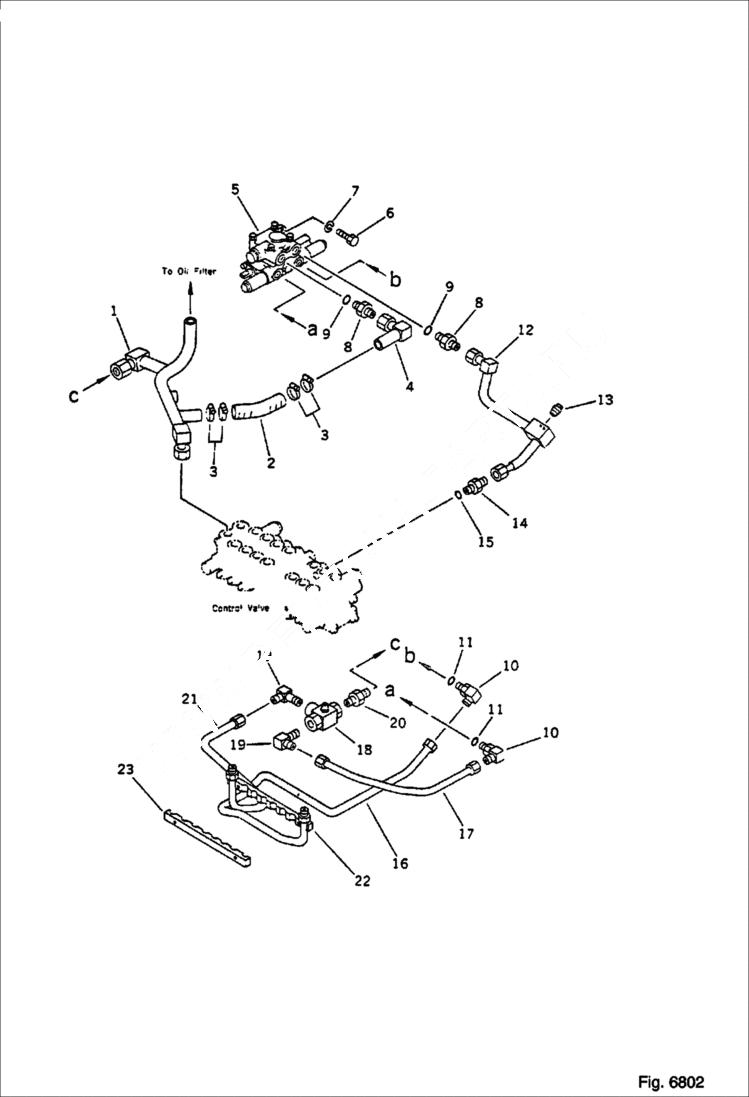

Запчасти Bobcat 56 HYDRAULIC PIPING (3RD VALVE SPEC.) (FOR BREAKER COMMON USE) WORK EQUIPMENT CONTROL SYSTEM

1

TUBE Was 20M-973-5430

2

6654081

HOSE

3

6637624

CLAMP

4

TUBE Was 20M-973-5420

5

6640570

VALVE ASSY See Illustration 1-SPOOL CONTROL VALVE/ 6205

6

6636959

BOLT

7

6637134

WASHER

8

6637822

NIPPLE

9

6637417

O-RING

10

6638399

ELBOW

11

6637415

O-RING

12

TUBE Was 20M-973-5410

13

PLUG Was 07042-30312

14

6637822

NIPPLE

15

6637417

O-RING

16

TUBE Was 20M-973-5471

17

TUBE Was 20M-973-5451

18

6638155

VALVE ass'y

19

6642684

ELBOW

20

6638180

NIPPLE

21

TUBE Was 20M-973-5480

22

CLAMP Was 20M-973-5490

23

CLAMP Was 20M-973-5510
