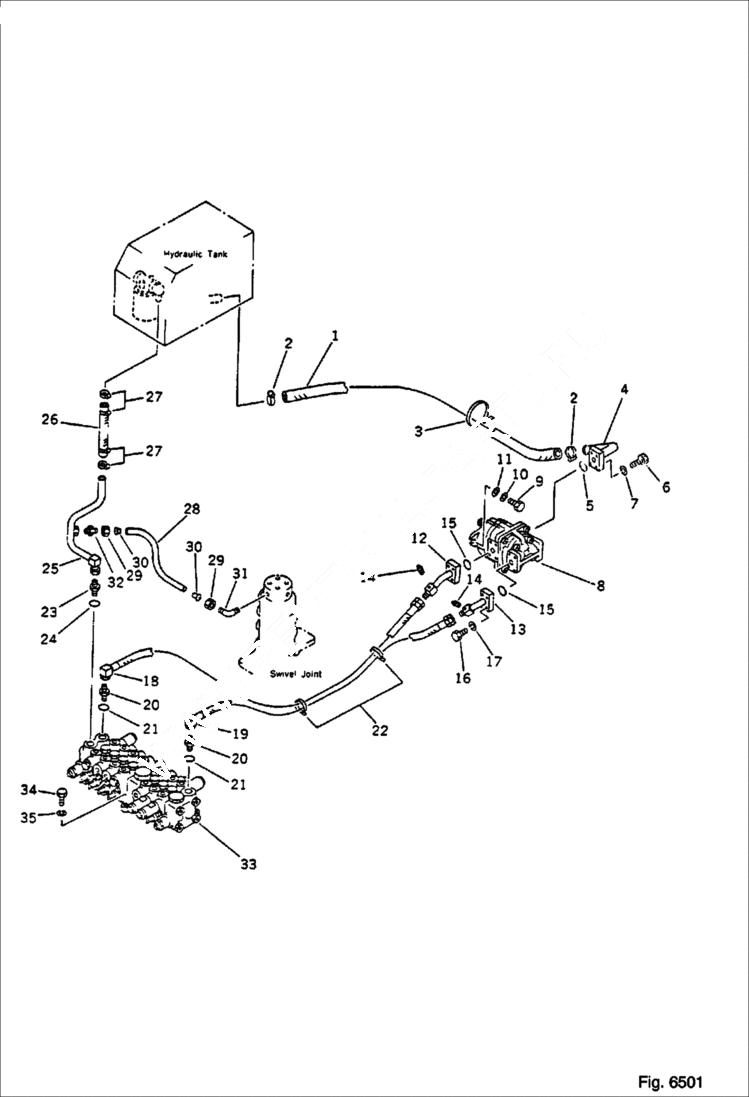

Запчасти Bobcat 56 HYDRAULIC PIPING (SUCTION AND RETURN LINE) WORK EQUIPMENT CONTROL SYSTEM

1

HOSE Was 07261-22010

2

6637624

CLAMP

3

6637683

BAND

4

6638087

TUBE

5

6637356

O-RING

6

6636968

BOLT

7

6637135

WASHER

8

PUMP ASS'Y See Illustration HYDRAULIC PUMP (1/2)/ 6101 Was 705-84-10010

9

6636968

BOLT

10

6637135

WASHER

11

6637157

WASHER

12

TUBE Was 20M-62-48110

13

TUBE Was 20M-62-48120

14

6642095

PLUG

15

6637354

O-RING

16

6636960

BOLT

17

6637134

WASHER

18

HOSE Was 20M-62-48221

19

HOSE Was 20M-62-48211

20

6637822

NIPPLE

21

6637417

O-RING

22

6637683

BAND

23

6637822

NIPPLE

24

6637417

O-RING

25

TUBE Was 20M-62-48131

26

6654081

HOSE

27

6637624

CLAMP

28

TUBE Was 07822-00603

29

6637665

NUT

30

6637662

SLEEVE

31

6637669

ELBOW

32

6637674

CONNECTOR

33

VALVE ASS'Y See Illustration 7-SPOOL CONTROL VALVE (1/2)/ 6201 Was 709-37-11600

34

6636960

BOLT

35

6637134

WASHER
