Запчасти Bobcat 56 1-SPOOL CONTROL VALVE WORK EQUIPMENT CONTROL SYSTEM

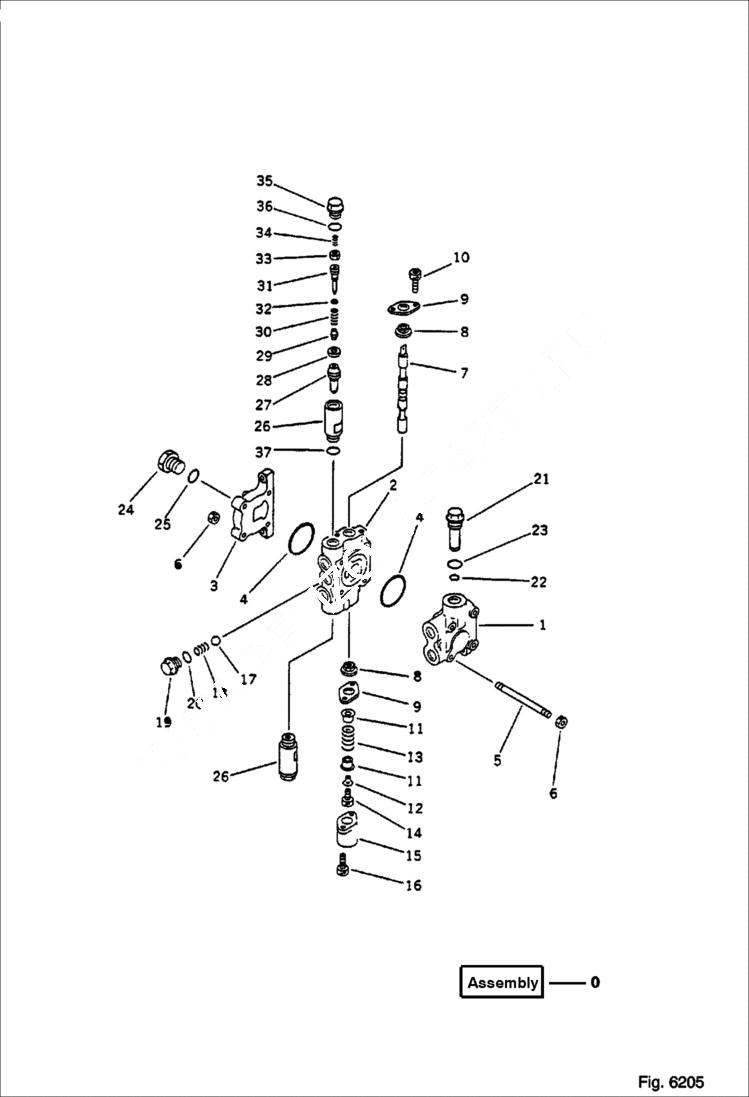

Схема запчастей Bobcat 56 - 1-SPOOL CONTROL VALVE WORK EQUIPMENT CONTROL SYSTEM

Артикул

Название

Примечание

Количество

0

6640570

VALVE ASSY

1

BLOCK

2

BLOCK

3

COVER

4

6637375

O-RING

5

6644840

STUD

6

6637107

NUT

7

SPOOL

8

6640575

SEAL

9

6640576

SHIELD

10

6637049

BOLT

11

6640577

RETAINER

12

6640578

COLLAR

13

6640581

SPRING

14

6637051

BOLT

15

6640579

COVER

16

6637050

BOLT

17

6637318

BALL

18

6640583

SPRING

19

6640582

PLUG

20

6637415

O-RING

21

VALVE Was 700-22-11150

22

6637371

O-RING

23

6637411

O-RING

24

6637437

PLUG

25

6637410

O-RING

25

VALVE ASS'Y suction and safety - Was 709-30-62200

26

6640555

SLEEVE

27

VALVE

28

SEAL

29

POPPET

30

SPRING

31

PISTON

32

O-RING

33

NUT

34

6640221

SPRING

35

6640556

PLUG

36

6637417

O-RING

37

6637410

O-RING

Выбрано товаров: 39
