HYDRAULIC PUMP (1/2)

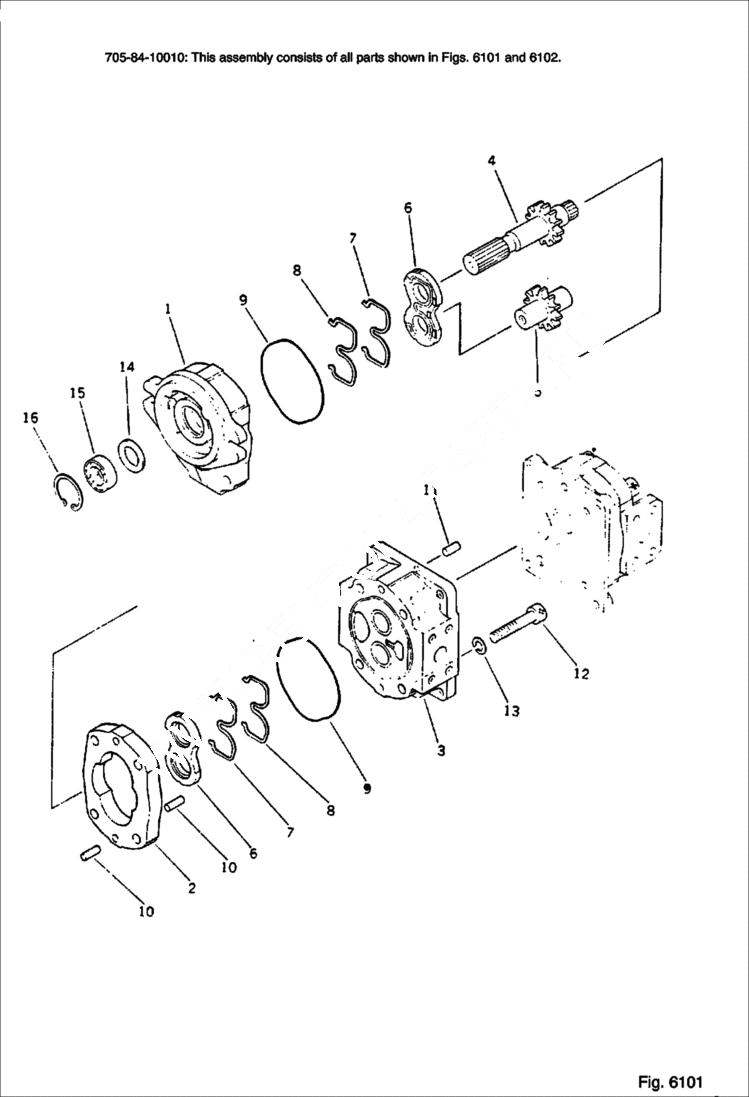

Запчасти Bobcat 56 HYDRAULIC PUMP (1/2) WORK EQUIPMENT CONTROL SYSTEM

Схема запчастей Bobcat 56 - HYDRAULIC PUMP (1/2) WORK EQUIPMENT CONTROL SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PUMP ASS'Y Was 705-84-10010

1

PUMP ASS'Y (LBR6) - Was 705-72-19210

1

BRACKET

2

CASE, GEAR

3

CARRIER

4

GEAR, DRIVE

5

GEAR, DRIVEN

6

6640319

SHIELD

7

SEAL Was 705-17-01470

8

6640317

RING

9

O-RING Was 705-17-01381

10

6637175

PIN, DOWEL

11

6640315

PIN

12

6637056

BOLT

13

6637135

WASHER

14

6640303

SHIELD

15

6640293

SEAL, OIL

16

6637231

RING, SNAP
