REVOLVING FRAME

Запчасти Bobcat 56 REVOLVING FRAME CONTROL SYSTEM AND REVOLVING FRAME

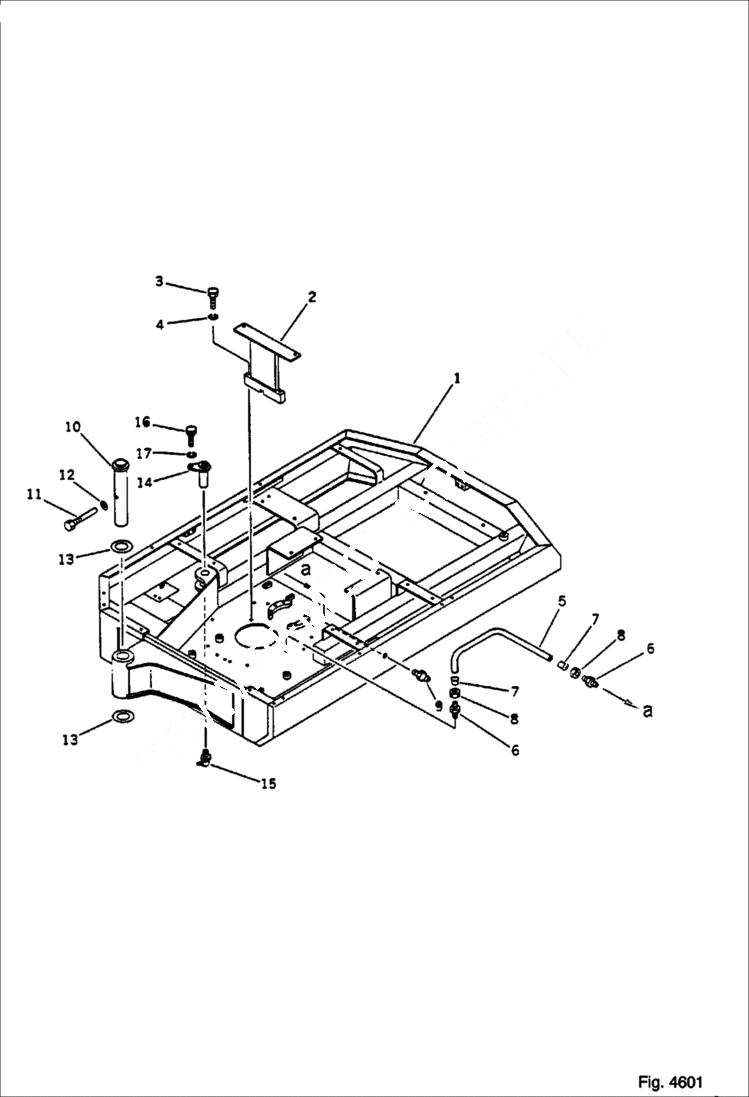

Схема запчастей Bobcat 56 - REVOLVING FRAME CONTROL SYSTEM AND REVOLVING FRAME
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

FRAME, REVOLVING Was 20M-46-48101

2

STOPPER Was 20M-46-48310

3

6642007

BOLT

4

6637134

WASHER

5

6659346

TUBE

6

6638568

CONNECTOR

7

6637661

SLEEVE

8

6637664

NUT

9

6637430

FITTING

10

PIN Was 20M-70-48211

11

6642374

BOLT

12

6637158

WASHER

13

6638134

SHIELD

14

6638135

PIN

15

6637431

FITTING

16

6636966

BOLT

17

6637135

WASHER
