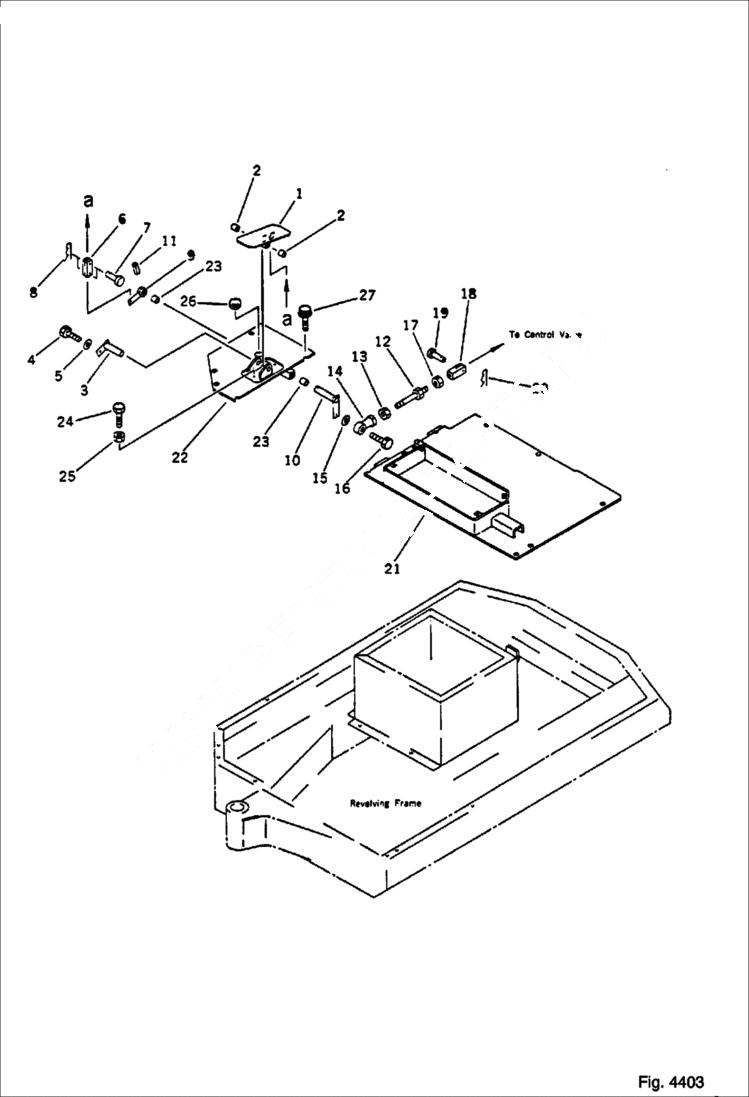

Запчасти Bobcat 56 3RD VALVE CONTROL PEDAL CONTROL SYSTEM AND REVOLVING FRAME

1

PEDAL Was 20M-973-5340

2

6637745

BUSHING

3

SHAFT Was 20M-973-5350

4

6636957

BOLT

5

6637134

WASHER

6

YOKE Was 20M-973-4390

7

6637255

PIN Was 6642059 - A

8

6642055

PIN

9

LEVER Was 20M-973-5360

10

LEVER Was 20M-973-5370

11

PIN, SPRING Was 04025-00524

12

6645869

ROD

13

6642030

NUT L.H. thread

14

6637311

ROD END L.H. thread

15

6637315

SHIM

16

6636959

BOLT

17

6637107

NUT

18

YOKE Was 20M-973-1560

19

6637249

PIN

20

6642053

PIN

21

FLOOR, L.H. Was 20M-973-5331

22

FLOOR, R.H. Was 20M-973-5310

23

6637745

BUSHING

24

BOLT, STOPPER Was 01016-50830

25

6637107

NUT

26

6637758

CAP

27

BOLT Was 01435-00812
