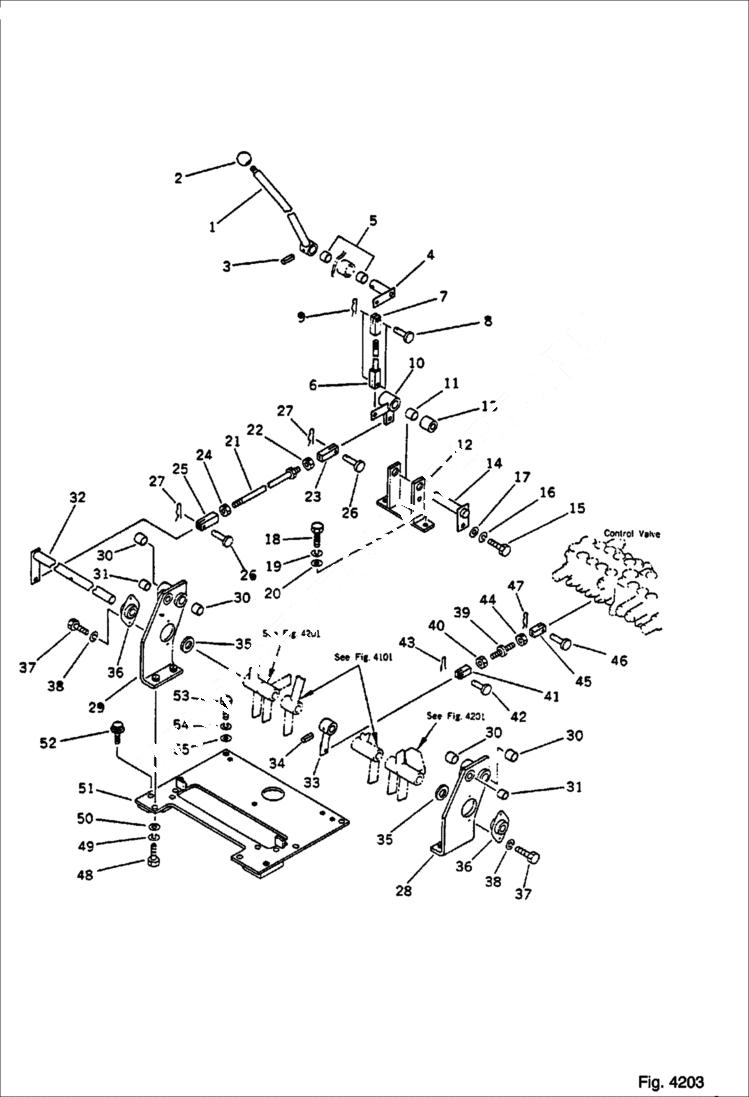

Запчасти Bobcat 56 BLADE CONTROL LEVER CONTROL SYSTEM AND REVOLVING FRAME

1

LEVER, BLADE Was 20M-43-48661

2

6638565

KNOB

3

6637190

PIN, ROLL

4

LEVER Was 20M-43-48651

5

6642151

BUSHING

6

ROD Was 20M-43-48520

7

6637267

YOKE

8

6637255

PIN Was 6642059 - A

9

6637212

PIN

10

LEVER Was 20M-43-48621

11

6637747

BUSHING

12

BRACKET Was 20M-43-48611

13

COLLAR Was 20M-43-48631

14

SHAFT Was 20M-43-48641

15

6636958

BOLT

16

6637134

WASHER

17

6637156

WASHER

18

6636958

BOLT

19

6637134

WASHER

20

6637156

WASHER

21

ROD Was 04248-31052

22

6637113

NUT

23

6637264

YOKE

24

6637100

NUT L.H. thread

25

6637271

YOKE L.H. thread

26

PIN Was 04205-31028

27

PIN, COTTER Was 04052-11038

28

BRACKET, L.H. Was 20M-43-48131

29

BRACKET, R.H. Was 20M-43-48121

30

6642151

BUSHING

31

6637745

BUSHING

32

SHAFT Was 20M-43-48261

33

LEVER Was 20M-43-48231

34

6637190

PIN, ROLL

35

6642042

WASHER

36

6642496

BEARING

37

6636957

BOLT

38

6637134

WASHER

39

ROD Was 20M-43-48281

40

6637107

NUT

41

YOKE Was 20M-43-48271

42

6637255

PIN Was 6642059 - A

43

6637197

PIN, COTTER

44

6642030

NUT L.H. thread

45

YOKE, L.H. THREAD Was 20M-43-48290

46

6637248

PIN

47

6637210

PIN

48

6636960

BOLT

49

6637134

WASHER

50

6637156

WASHER

51

PLATE Was 20M-43-48111

52

BOLT Was 01435-00830

53

6636958

BOLT

54

6637134

WASHER

55

6637156

WASHER
