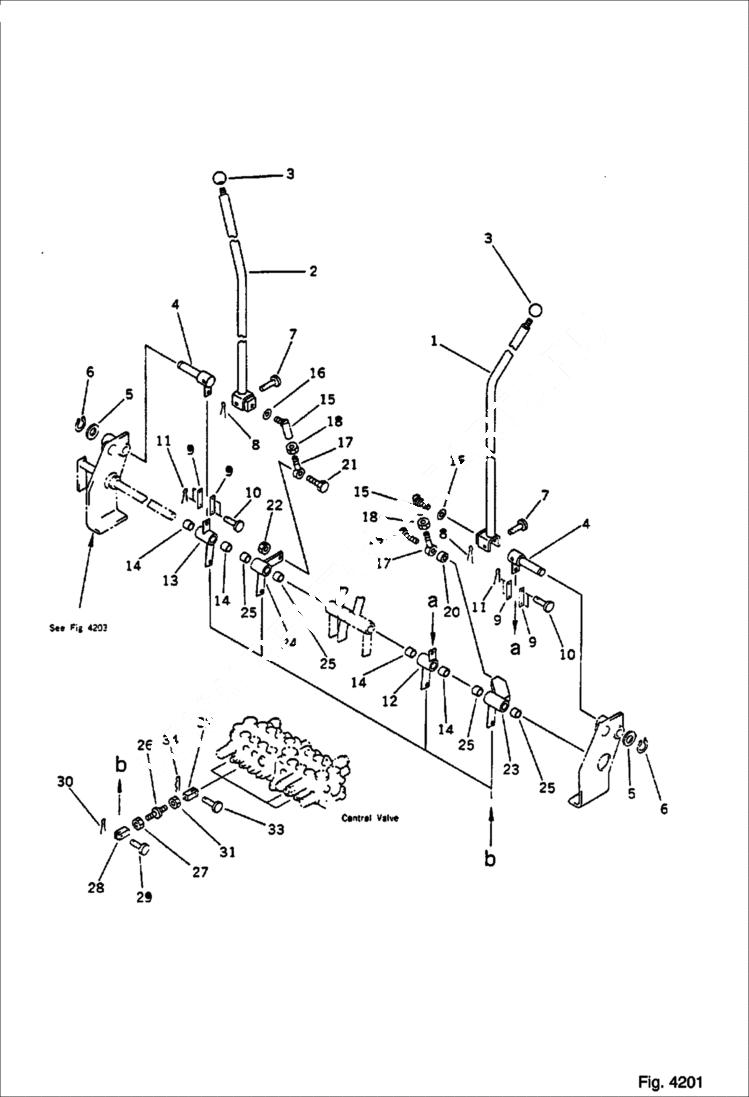

Запчасти Bobcat 56 SWING AND WORK EQUIPMENT CONTROL LEVER CONTROL SYSTEM AND REVOLVING FRAME

1

LEVER, L.H. Was 20M-43-48171

2

LEVER, R.H. Was 20M-43-48161

3

6638565

KNOB

4

LEVER Was 20M-43-48181

5

6642042

WASHER

6

6637220

RING, SNAP

7

6639440

PIN

8

6637199

PIN, COTTER

9

6655387

YOKE

10

6637255

PIN Was 6642059 - A

11

6637197

PIN, COTTER

12

LEVER, ARM Was 20M-43-48241

13

LEVER, BOOM Was 20M-43-48211

14

6642151

BUSHING

15

6639441

CONNECTOR

16

6637157

WASHER

17

6639442

END

18

6637108

NUT

19

6636971

BOLT

20

6637977

SHIM

21

6636969

BOLT

22

6637108

NUT

23

LEVER, SWING Was 20M-43-48251

24

LEVER BUCKET Was 20M-43-48221

25

6642151

BUSHING

26

ROD Was 20M-43-48281

27

6637107

NUT

28

YOKE Was 20M-43-48271

29

6637255

PIN Was 6642059 - A

30

PIN, COTTER Was 04050-12015

31

6642030

NUT L.H. thread

32

YOKE, L.H. THREAD Was 20M-43-48290

33

6637248

PIN

34

6637210

PIN
