ELECTRICAL SYSTEM (2/2) (CHASSIS LINE)

Запчасти Bobcat 56 ELECTRICAL SYSTEM (2/2) (CHASSIS LINE) ENGINE RELATED PARTS AND ELECTRICAL SYSTEM

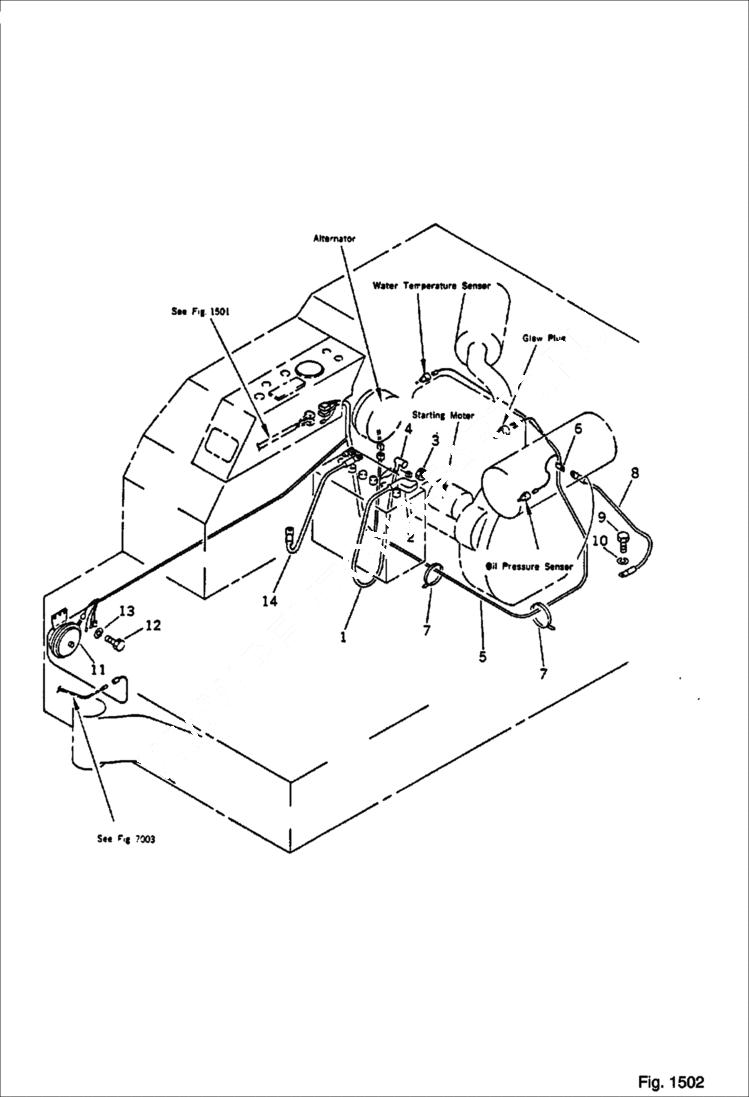

Схема запчастей Bobcat 56 - ELECTRICAL SYSTEM (2/2) (CHASSIS LINE) ENGINE RELATED PARTS AND ELECTRICAL SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6637933

CABLE wire assembly

2

6641557

CAP

3

NUT Was 01580-10806

4

6637710

CAP

5

WIRE ASSY Was 20M-06-48230

6

6637695

CLIP

7

6637683

BAND

8

6637944

WIRE

9

6636951

BOLT

10

6637134

WASHER

11

6637726

HORN

12

6636951

BOLT

13

6637134

WASHER

14

6637934

CABLE
