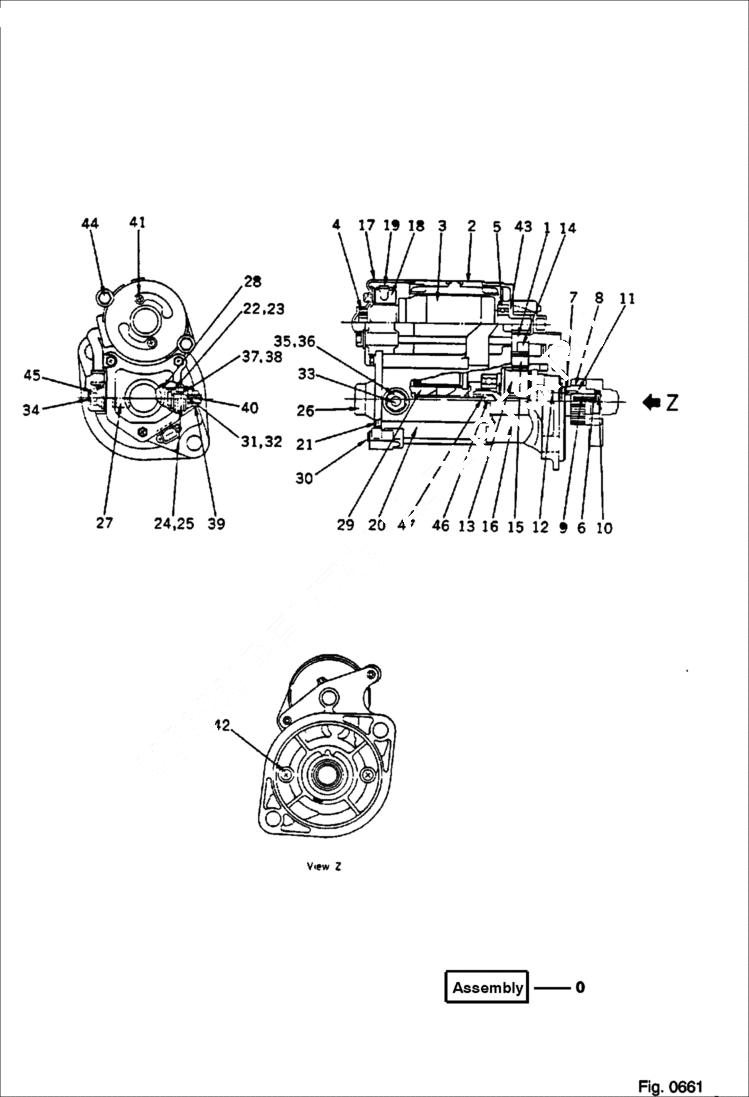

Запчасти Bobcat 56 STARTING MOTOR ELECTRICAL SYSTEM

0

6636421

MOTOR, STARTING ass'y

1

6636250

RETAINER

2

6636252

YOKE ASSEMBLY

3

6636254

ARMATURE ass'y

4

6636293

BEARING

5

6636294

BEARING

5

6636256

CLUTCH ASSEMBLY

6

6641797

NUT

7

6636258

RETAINER

8

6636262

GEAR

9

6636263

SHAFT

10

6636292

RING

11

6636299

SPRING

12

6636301

SPRING

13

6636550

CLUTCH

14

6636257

ROLLER

15

6636259

GEAR

16

6636264

HOUSING

17

6636266

FRAME

18

6636267

RETAINER

19

6636302

SPRING

20

6636270

SWITCH ASSEMBLY

21

6636272

GASKET

22

6636273

BUSHING

23

6636273

BUSHING

24

6636274

BUSHING

25

6636274

BUSHING

26

6636275

COVER

27

6636276

SHIELD

28

6636277

SHIELD

29

6636278

PISTON plunger

30

6636282

BOLT

31

6636285

WASHER

32

6636285

WASHER

33

6636287

BOLT

34

6636288

BOLT

35

6636290

NUT

36

6636290

NUT

37

6636298

O-RING

38

6636298

O-RING

39

6636280

NUT

40

6636281

WASHER

41

6636283

SCREW

42

6636284

SCREW

43

6636286

WASHER

44

6636289

BOLT

45

6636291

NUT

46

6636297

BALL

47

6636300

SPRING
