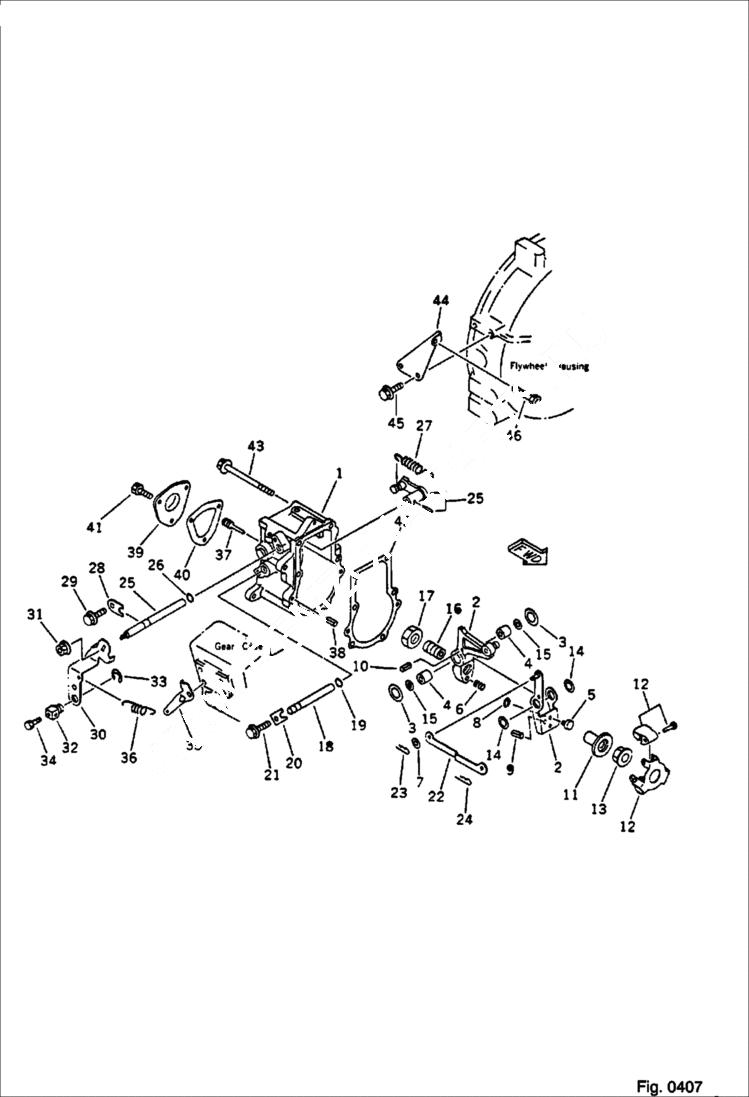

Запчасти Bobcat 56 GOVERNOR CONTROL FUEL SYSTEM

1

CASE Was YM119660-61013

2

LEVER ASS'Y Was YM119656-61500

3

6636772

SHIM ASMBLY

4

BEARING, NEEDLE Was YM121450-61520

5

SHIFTER Was YM119600-61540

6

SPRING Was YM119660-61651

7

6636774

WASHER

8

6636785

RING

9

PIN, SPRING Was YM22351-020004

10

PIN, SPRING Was YM22351-030014

11

6636484

SLEEVE

12

WEIGHT ASS'Y Was YM119600-61200

13

6636483

NUT

14

6636723

WASHER

15

SHIM ASS'Y Was YM119660-61460

16

CAPSULE Was YM119610-66700

17

NUT, LOCK Was YM129155-61590

18

6636485

SHAFT

19

6636687

O-RING

20

6636487

STOPPER plate

21

6636834

BOLT

22

6636481

LINK

23

6636797

PIN

24

6636799

PIN

25

SHAFT NLA - Was 6651516 - A

26

O-RING Was YM24341-000070

27

SPRING Was YM119600-66020

28

PLATE Was YM119600-61900

29

6636834

BOLT

30

HANDLE Was YM119640-66051

31

6636773

NUT

32

6636589

STOPPER connector

33

6636786

RING

34

6636866

BOLT

35

6636450

BRACE

36

6636535

SPRING

37

6636603

SCREW

38

6636794

PIN

39

6636479

COVER

40

6636480

PACKING

41

6636867

SCREW

42

6636478

PACKING

43

6636844

BOLT

44

6636442

BRACKET

45

6636847

BOLT

46

6636309

BOLT
