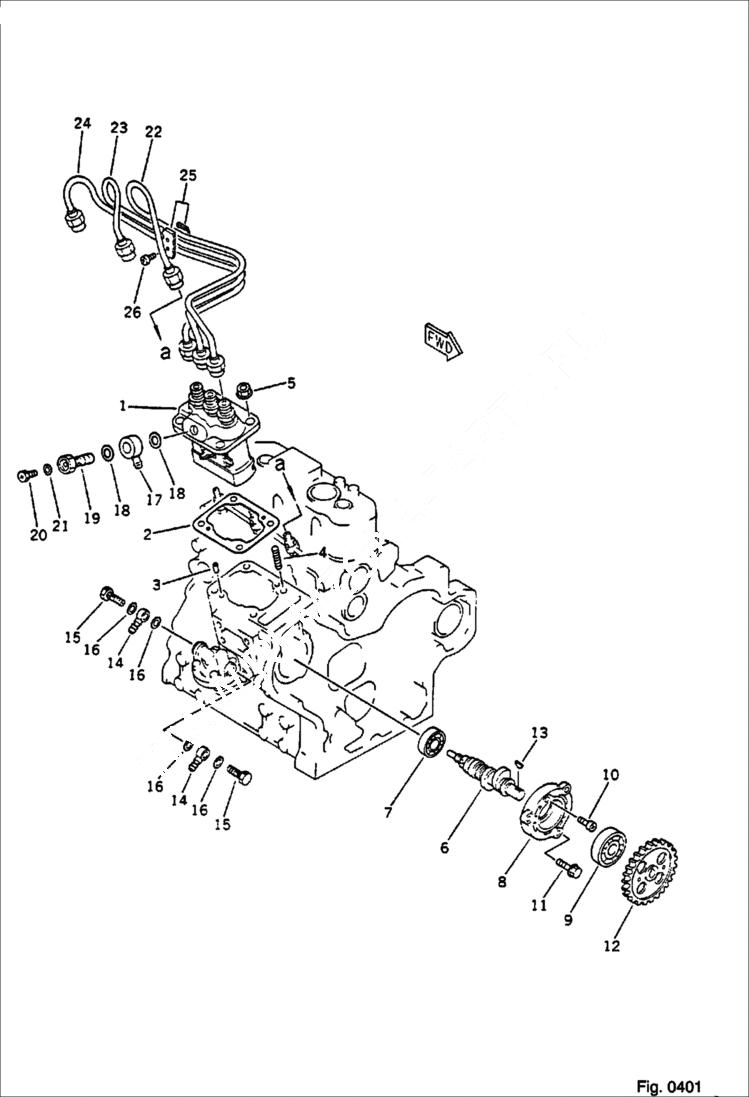

Запчасти Bobcat 56 FUEL INJECTION PUMP AND PIPING FUEL SYSTEM

1

6636925

PUMP, FUEL See Illustration FUEL INJECTION PUMP/ 0451 ass'y

2

6636361

SHIM ass'y

3

6636794

PIN

4

6636564

STUD

5

6636773

NUT

6

6636462

CAM

7

6636819

BEARING

8

6636458

SHIELD

9

BEARING Was YM24101-062034

10

6636893

SCREW

11

6636836

BOLT

12

6636467

GEAR

13

6636801

KEY

14

6636331

CONNECTOR

15

6636338

BOLT

16

6636808

PACKING

17

6636307

CONNECTOR

18

6636327

PACKING

19

6636319

BOLT ball joint assembly

19

6636320

BOLT

20

PLUG NLA - Was 6636586 - A

21

6636910

PACKING washer

22

PIPE injection - No. 1 - Was YM119620-59831

23

PIPE injection - No. 2 - Was YM119620-59821

24

PIPE injection - No. 3 - Was YM119620-59811

25

6636674

CLIP ass'y

26

6636675

BOLT
