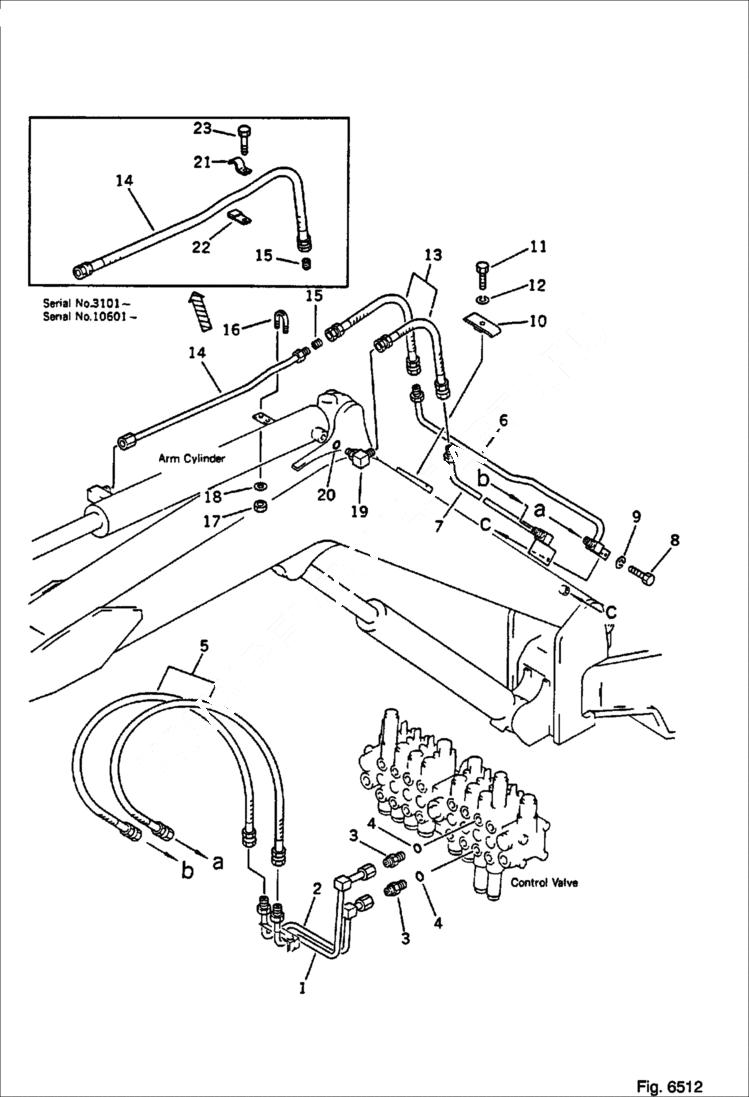

Запчасти Bobcat 56 HYDRAULIC PIPING (VALVE TO/FROM ARM CYLINDER) WORK EQUIPMENT CONTROL SYSTEM

1

6638083

TUBE

2

6638084

TUBE

3

6638398

NIPPLE

4

6637415

O-RING

5

6638062

HOSE

6

6642350

TUBE Komatsu S/N 10401-10600

6

6642364

TUBE Komatsu S/N 10601 & Abv.

7

6638108

TUBE

8

6636958

BOLT

9

6637134

WASHER

10

6638117

CLAMP

11

6636959

BOLT

12

6637134

WASHER

13

6638113

HOSE Komatsu S/N 10401-10600

13

6638113

HOSE Komatsu S/N 10601 & Abv.

14

6642354

TUBE Komatsu S/N 10401-10600

14

6636157

HOSE Komatsu S/N 10601 & Abv.

15

6638059

PLUG

16

6637635

CLIP Komatsu S/N 10401-10600

17

6640818

NUT Komatsu S/N 10401-10600

17

6637107

NUT Komatsu S/N 10601 & Abv.

18

6637155

WASHER Komatsu S/N 10401-10600

18

6637134

WASHER Komatsu S/N 10601 & Abv.

19

6640849

ELBOW

20

6637414

O-RING

21

6638119

CLIP Komatsu S/N 10601 & Abv.

22

6638118

SEAT Komatsu S/N 10601 & Abv.

23

6636959

BOLT Komatsu S/N 10601 & Abv.
