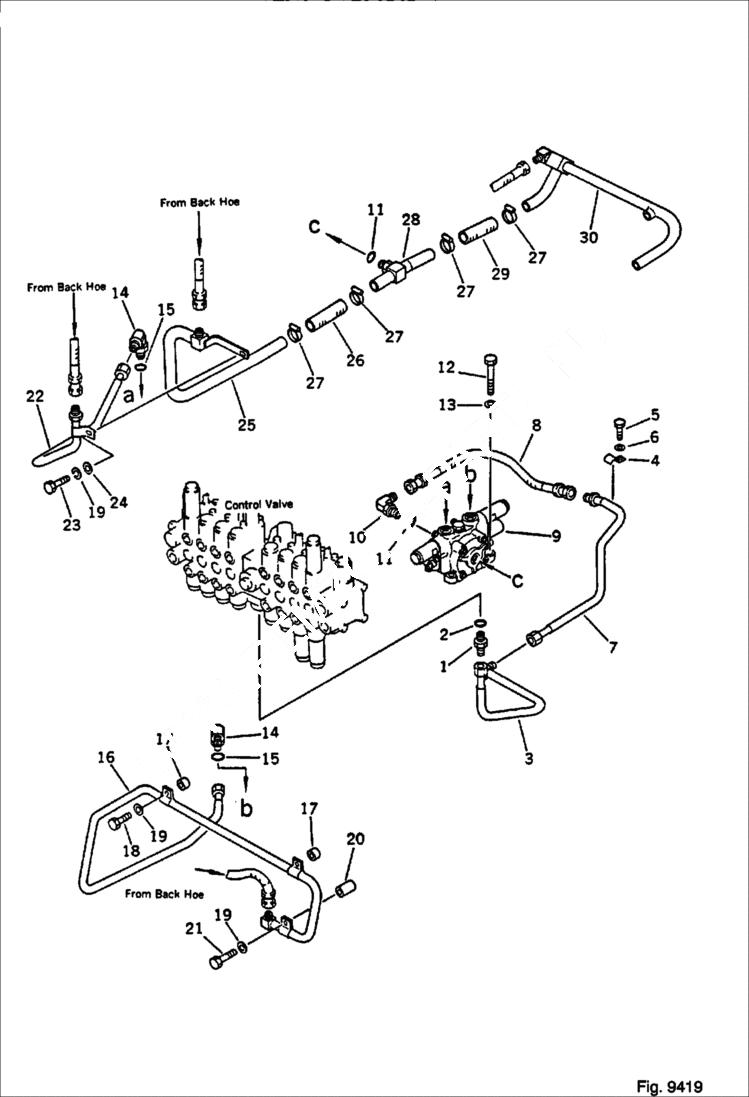

Запчасти Bobcat 56 HYDRAULIC PIPING (VALVE TO/FROM BACKHOE) (FOR ADDITIONAL VALVE) WORK EQUIPMENT CONTROL SYSTEM

1

NIPPLE Was 980-853-6220

2

6637417

O-RING

3

6642394

TUBE

4

6638073

CLAMP

5

6636957

BOLT

6

6637134

WASHER spring

7

6638166

TUBE

8

6638168

HOSE

9

6640569

VALVE ASSEMBLY

10

6637587

ELBOW

11

6637417

O-RING

12

6636960

BOLT

13

6637134

WASHER spring

14

6638399

ELBOW

15

6637372

O-RING

16

6638167

TUBE

17

6638170

SHIM

18

6636961

BOLT

19

6637134

WASHER

20

6638171

SHIM

21

6642006

BOLT

22

6638169

TUBE

23

6636958

BOLT

24

6642046

WASHER

25

6638173

TUBE

26

6637600

HOSE

27

6642113

CLAMP

28

6638174

TUBE

29

6637601

HOSE

30

6642395

TUBE Komatsu S/N 10401-10600

30

6638172

TUBE Komatsu S/N 10601 & Abv.
