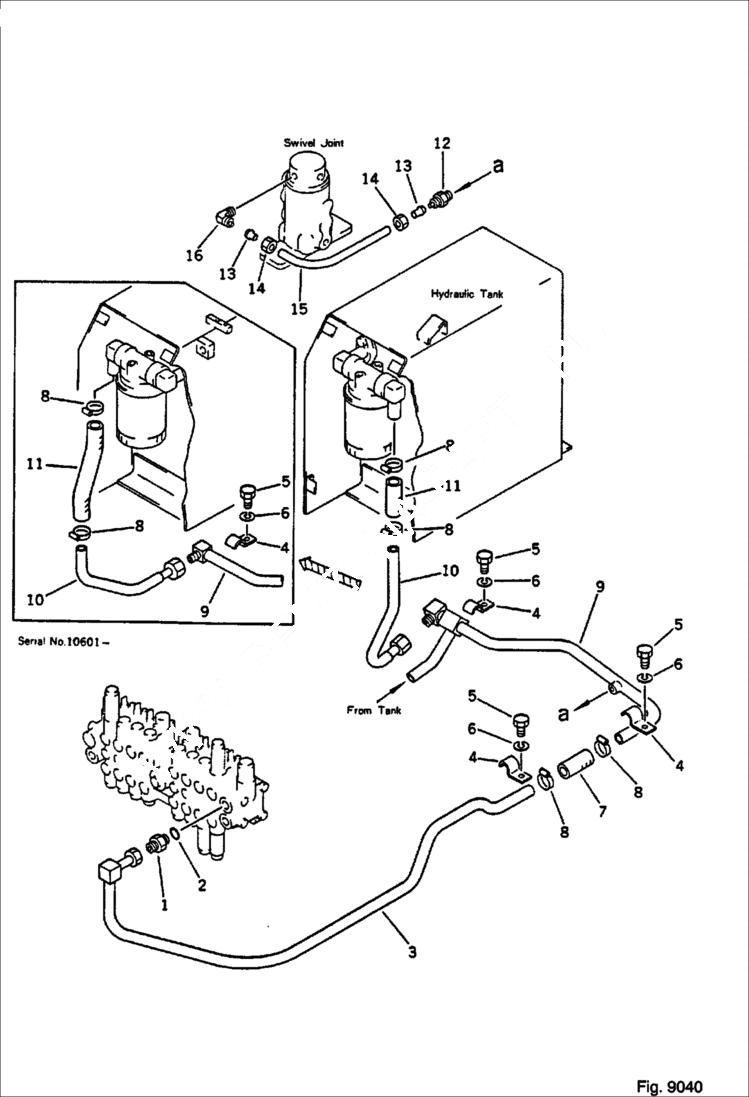

Запчасти Bobcat 56 HYDRAULIC PIPING (VALVE TO TANK) WORK EQUIPMENT CONTROL SYSTEM

1

6637822

NIPPLE

2

6637417

O-RING

3

6638125

TUBE

4

6638074

CLAMP

5

6636957

BOLT

6

6637134

WASHER

7

6637600

HOSE

8

6637624

CLAMP

9

6642362

TUBE Komatsu S/N 10401-10600

9

6638121

TUBE Komatsu S/N 10601 & Abv.

10

6642363

TUBE Komatsu S/N 10401-10600

10

6638126

TUBE Komatsu S/N 10601 & Abv.

11

6637600

HOSE Komatsu S/N 10401-10600

11

6640831

HOSE Komatsu S/N 10601 & Abv.

12

6637674

CONNECTOR nipple

13

6637662

SLEEVE

14

6637665

NUT

15

6638122

TUBE

16

6637669

ELBOW
