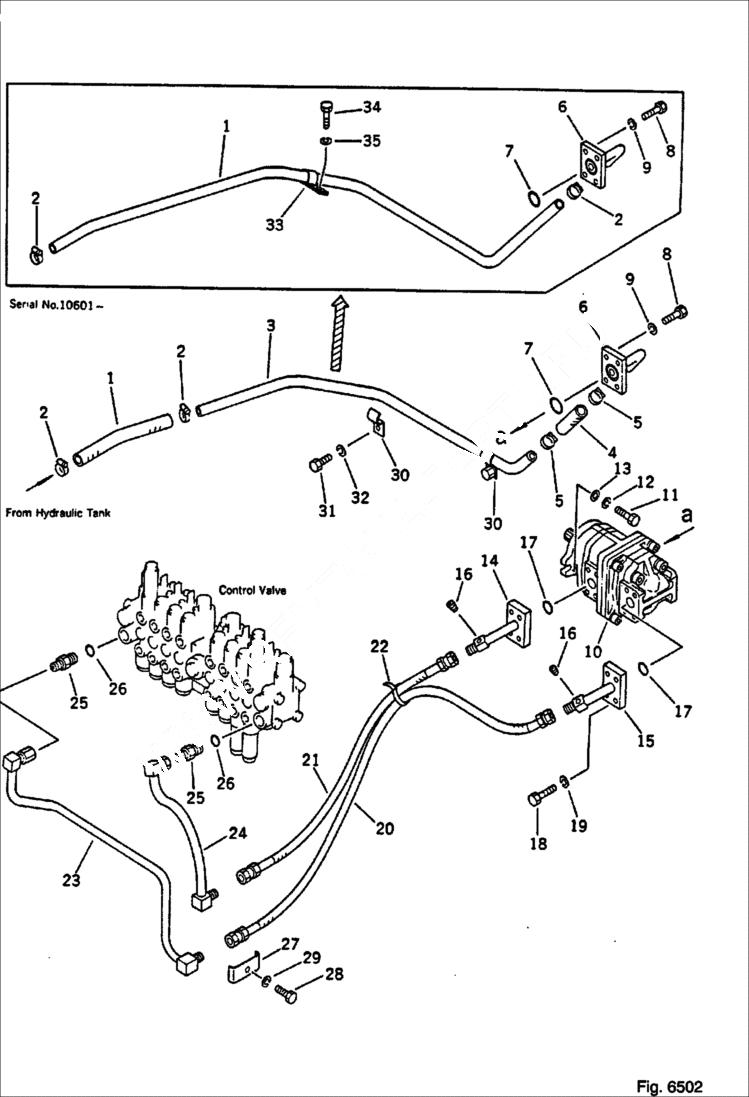

Запчасти Bobcat 56 HYDRAULIC PIPING (VALVE TO PUMP TO VALVE) WORK EQUIPMENT CONTROL SYSTEM

1

HOSE Komatsu S/N 10401-10600 - Was 07260-22021

1

6637608

HOSE Komatsu S/N 10601 & Abv.

2

6637624

CLAMP

3

6642344

TUBE Komatsu S/N 10401-10600

4

6642108

HOSE Komatsu S/N 10401-10600

5

6637624

CLAMP Komatsu S/N 10401-10600

6

6638087

TUBE

7

6637356

O-RING

8

6636968

BOLT

9

6637135

WASHER spring

10

6640330

PUMP ASY

11

6636968

BOLT

12

6637135

WASHER spring

13

6637157

WASHER

14

6638086

TUBE

15

6638085

TUBE

16

6637445

PLUG

17

6637354

O-RING

18

6636960

BOLT

19

6637134

WASHER spring

20

6638088

HOSE

21

6638062

HOSE

22

6637682

BAND

23

6642347

TUBE

24

6642345

TUBE

25

6637822

NIPPLE

26

6637417

O-RING

27

6638124

CLAMP

28

6636959

BOLT

29

6637134

WASHER spring

30

6638073

CLAMP Komatsu S/N 10401-10600

31

6636957

BOLT Komatsu S/N 10401-10600

32

6637134

WASHER spring - Komatsu S/N 10401-10600

33

6637698

CLIP Komatsu S/N 10601 & Abv.

34

6636965

BOLT Komatsu S/N 10601 & Abv.

35

6637135

WASHER Komatsu S/N 10601 & Abv.
