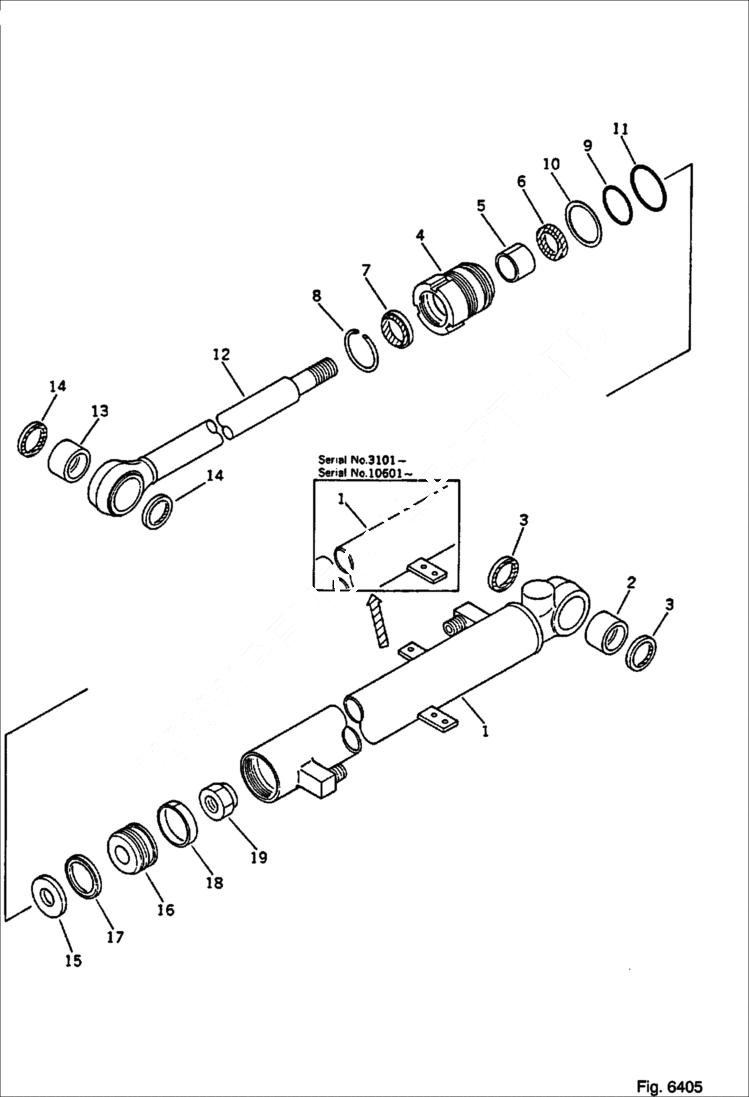

Запчасти Bobcat 56 BUCKET CYLINDER WORK EQUIPMENT CONTROL SYSTEM

1

CYLINDER ASS'Y Komatsu S/N 10401-10600 - Was 707-00-50630

1

6640381

CYLINDER assembly - Komatsu S/N 10601 & Abv.

1

6643205

CYLINDER Komatsu S/N 10401-10600

1

6640386

CYL CASE Komatsu S/N 10601 & Abv.

2

6637519

BUSHING

3

6637531

SEAL, DUST

4

6640392

CYL HEAD

5

6637561

BUSHING

6

6640430

PACKING rod

7

DUST SEAL NLA - Was 6648849 - A

8

6637569

RING, SNAP

9

6637388

O-RING

10

6640405

RING back-up

11

6637361

O-RING

12

6640442

ROD piston

13

6637519

BUSHING

14

6637531

SEAL, DUST

15

6640419

RETAINER

16

6640408

PISTON

17

6637549

RING, PISTON

18

6637817

RING, WEAR

19

6637552

NUT
