Запчасти Bobcat 56 ARM CYLINDER WORK EQUIPMENT CONTROL SYSTEM

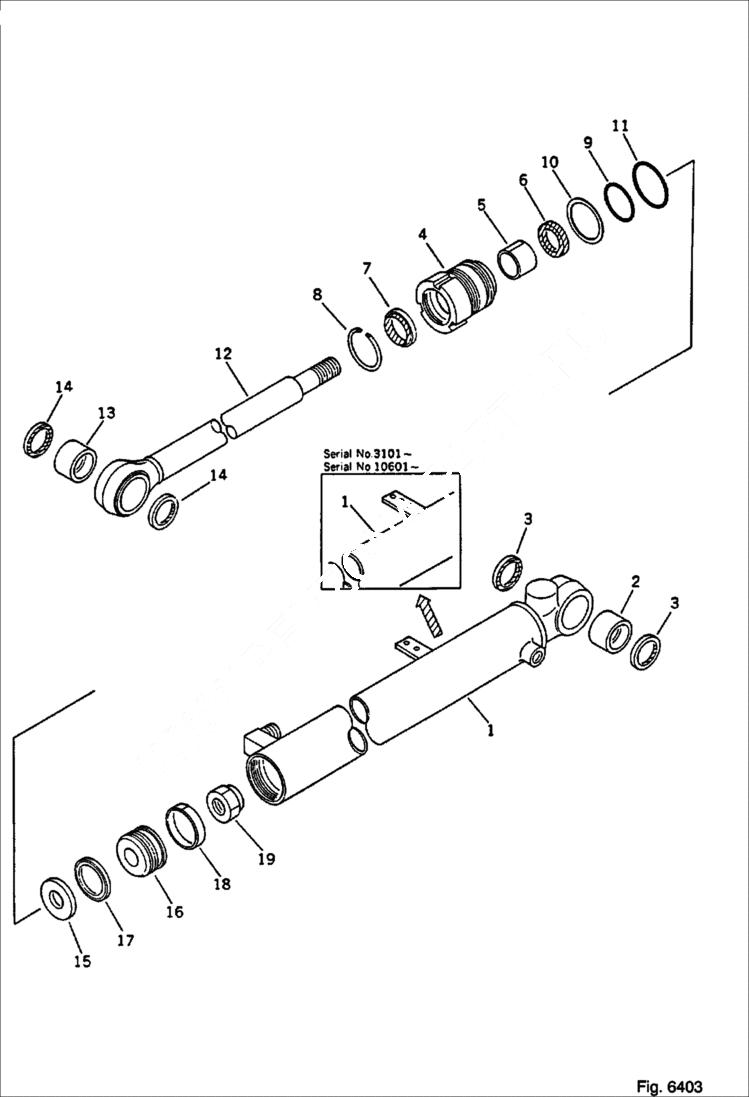

Схема запчастей Bobcat 56 - ARM CYLINDER WORK EQUIPMENT CONTROL SYSTEM

Артикул

Название

Примечание

Количество

1

CYLINDER ASS'Y Komatsu S/N 10401-10600 - Was 707-00-50620

1

6640380

CYLINDER assembly - Komatsu S/N 10601 & Abv.

1

6643204

CYLINDER Komatsu S/N 10401-10600

1

6640385

CYL CASE Komatsu S/N 10601 & Abv.

2

6637519

BUSHING

3

6637531

SEAL, DUST

4

6640392

CYL HEAD

5

6637561

BUSHING

6

6640430

PACKING rod

7

DUST SEAL NLA - Was 6648849 - A

8

6637569

RING, SNAP

9

6637388

O-RING

10

6640405

RING back-up

11

6637361

O-RING

12

6640443

ROD piston

13

6637519

BUSHING

14

6637531

SEAL, DUST

15

6640419

RETAINER

16

6640408

PISTON

17

6637549

RING, PISTON

18

6637817

RING, WEAR

19

6637552

NUT

Выбрано товаров: 22
