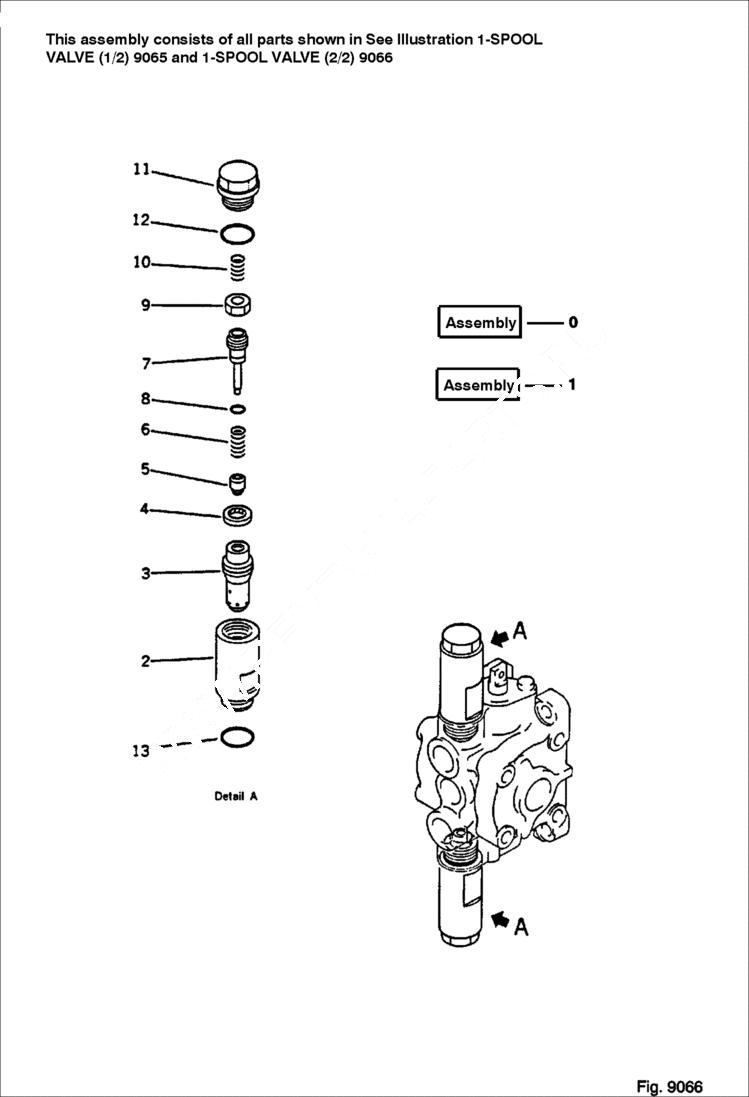

Запчасти Bobcat 56 1-SPOOL VALVE (2/2) (FOR ADDITIONAL VALVE) WORK EQUIPMENT CONTROL SYSTEM

0

6640569

VALVE ASSEMBLY See Illustration 1-SPOOL VALVE (1/2)/ 9065 1-spool control

1

6640557

VALVE suction and over load relief

2

6640555

SLEEVE

3

6643224

VALVE

4

6640226

SEAL

5

6643225

POPPET

6

6643227

SPRING

7

6643226

SCREW piston

8

6642082

O-RING

9

6643194

NUT

10

6640221

SPRING

11

6640556

PLUG

12

6637417

O-RING

13

6637410

O-RING
