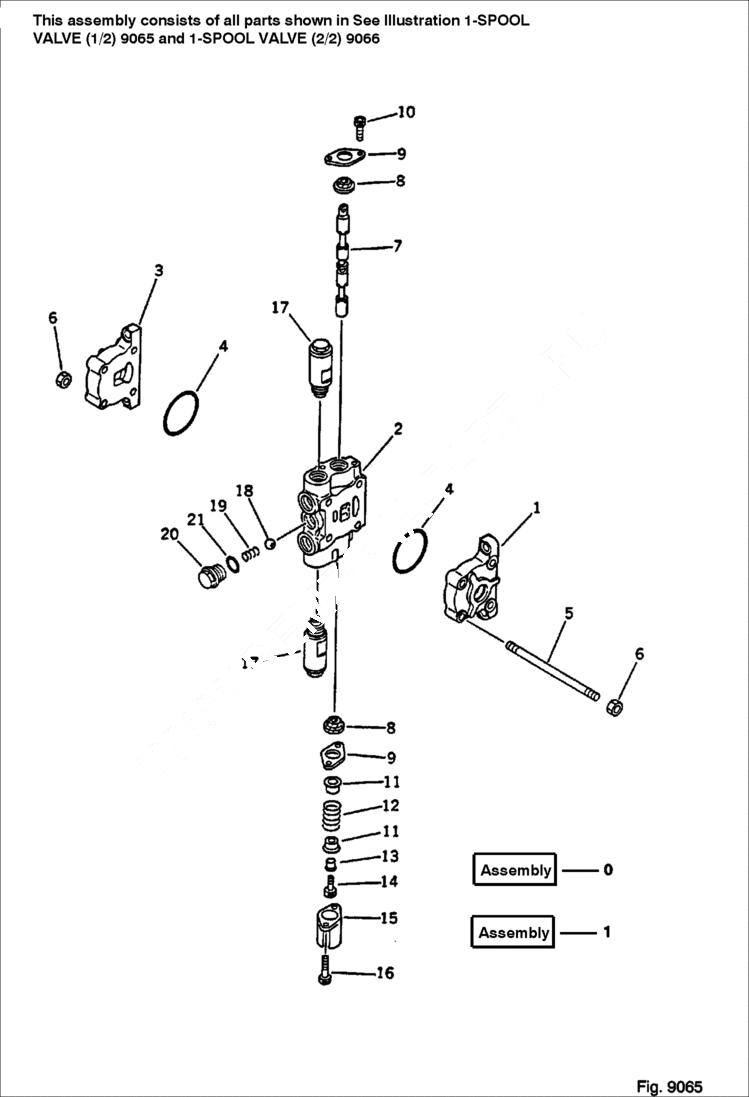

Запчасти Bobcat 56 1-SPOOL VALVE (1/2) (FOR ADDITIONAL VALVE) WORK EQUIPMENT CONTROL SYSTEM

0

6640569

VALVE ASSEMBLY See Illustration 1-SPOOL VALVE (2/2)/ 9066 1- spool control

1

BLOCK Was 709-31-11170

2

6640572

BLOCK

3

COVER Was 709-32-1150

4

6637375

O-RING

5

6643236

STUD

6

6637107

NUT

7

6640573

SPOOL

8

6640575

SEAL

9

6640576

SHIELD

10

6637049

BOLT

11

6640577

RETAINER

12

6640581

SPRING

13

6640578

COLLAR

14

6637051

BOLT

15

6640579

COVER

16

6637051

BOLT

17

6640557

VALVE assembly - suction and safety

18

6637318

BALL

19

6640583

SPRING

20

6640582

PLUG

21

6637415

O-RING
