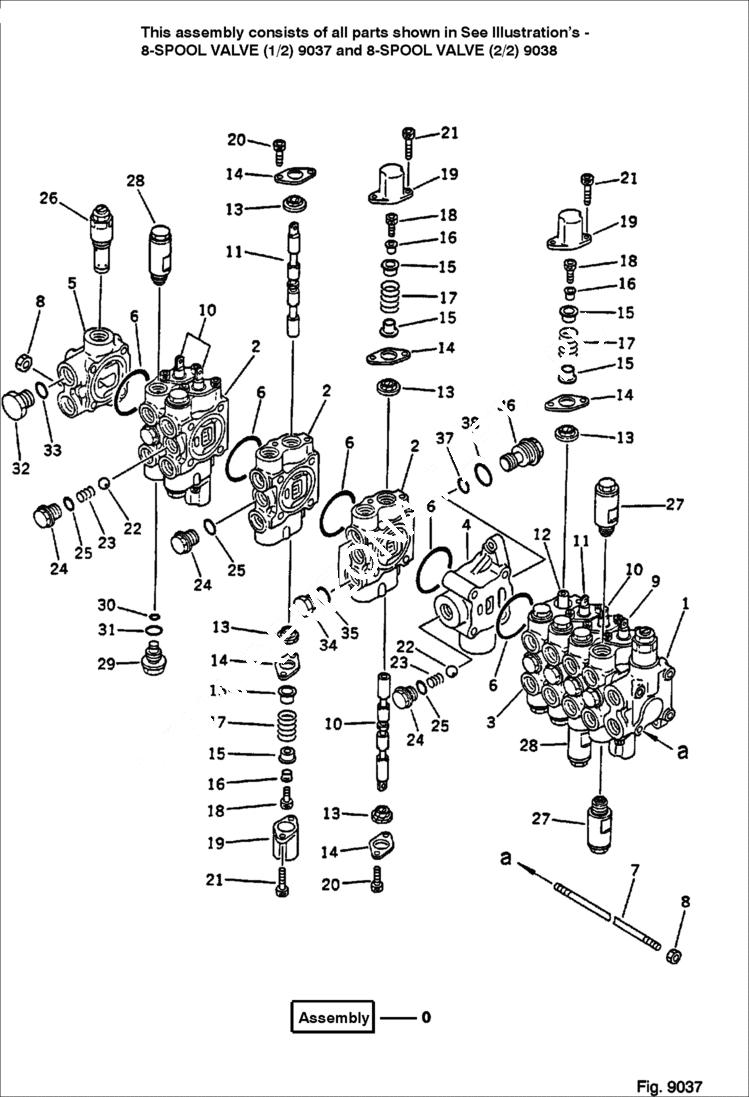

Запчасти Bobcat 56 8-SPOOL VALVE (1/2) (FOR ADDITIONAL VALVE) WORK EQUIPMENT CONTROL SYSTEM

0

6642157

VALVE ASSEMBLY See Illustration 8-SPOOL VALVE (2/2)/ 9038 Komatsu S/N 10401-10600

0

6640598

VALVE ASSEMBLY See Illustration 8-SPOOL VALVE (2/2)/ 9038 Komatsu S/N 10601 & Abv.

1

6640571

BLOCK

2

6640572

BLOCK

3

BLOCK Was 709-32-11260

4

6641788

BLOCK

5

6643237

BLOCK

6

6637375

O-RING

7

6640599

STUD

8

6637107

NUT

9

6641828

SPOOL swing

10

6640573

SPOOL arm, boom swing, bucket and boom

11

6641823

SPOOL travel

12

SPOOL, BLADE Was 709-32-11360

13

6640575

SEAL

14

6640576

SHIELD

15

6640577

RETAINER

16

6640578

COLLAR

17

6640580

SPRING

18

6637051

BOLT

19

6640579

COVER

20

6637049

BOLT

21

6637050

BOLT

22

6637318

BALL

23

6640583

SPRING

24

6640582

PLUG

25

6637415

O-RING

26

6640249

VALVE assembly - main relief

27

6640560

VALVE assembly - suction and safety - Komatsu S/N 10401-10600

27

6643230

VALVE ASY suction and safety - Komatsu S/N 10601 & Abv.

28

6640557

VALVE assembly - suction and safety

29

6640584

PLUG

30

6640585

O-RING

31

6637410

O-RING

32

6637437

PLUG

33

6637410

O-RING

34

6637436

PLUG

35

6637416

O-RING

36

6640586

PLUG

37

6640243

O-RING

38

6637411

O-RING
