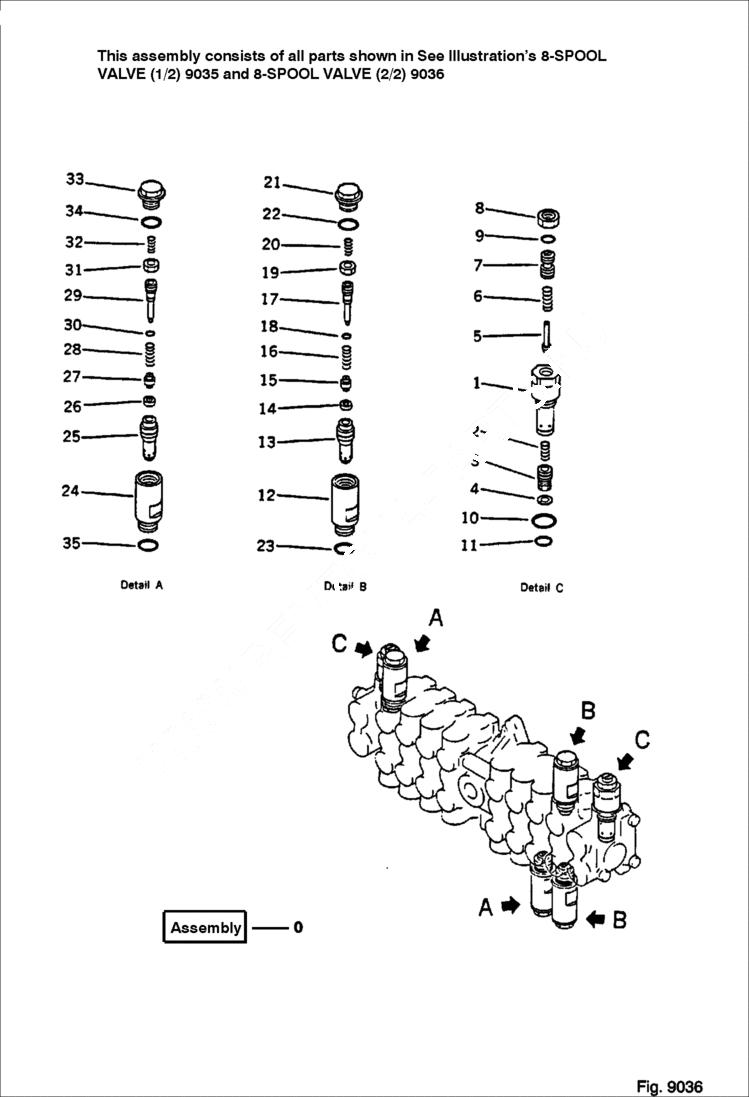

Запчасти Bobcat 56 8-SPOOL VALVE (2/2) WORK EQUIPMENT CONTROL SYSTEM

0

6642157

VALVE ASSEMBLY See Illustration 8-SPOOL VALVE (1/2)/ 9035 Komatsu S/N 10401-10600

0

6640598

VALVE ASSEMBLY See Illustration 8-SPOOL VALVE (1/2)/ 9035 Komatsu S/N 10601 & Abv.

0

6640249

VALVE assembly - main relief

1

6643192

SLEEVE

2

6640220

SPRING

3

6643193

VALVE

4

6640217

RING

5

6640258

POPPET

6

6640219

SPRING

7

6640218

SCREW

8

6637115

NUT

9

6637335

O-RING

10

6640243

O-RING

11

6637411

O-RING

12

6640560

VALVE assembly - suction and safety - Komatsu S/N 10401-10600

12

6643230

VALVE ASY suction and safety - Komatsu S/N 10601 & Abv.

12

6640555

SLEEVE

13

6643224

VALVE

14

6640226

SEAL

15

6643225

POPPET

16

6643228

SPRING

17

6643226

SCREW

18

6642082

O-RING

19

6643194

NUT

20

6640221

SPRING

21

6640556

PLUG

22

6637417

O-RING

23

6637410

O-RING

24

6640557

VALVE assembly - suction and safety

24

6640555

SLEEVE

25

6643224

VALVE

26

6640226

SEAL

27

6643225

POPPET

28

6643227

SPRING

29

6643226

SCREW

30

6642082

O-RING

31

6643194

NUT

32

6640221

SPRING

33

6640556

PLUG

34

6637417

O-RING

35

6637410

O-RING
