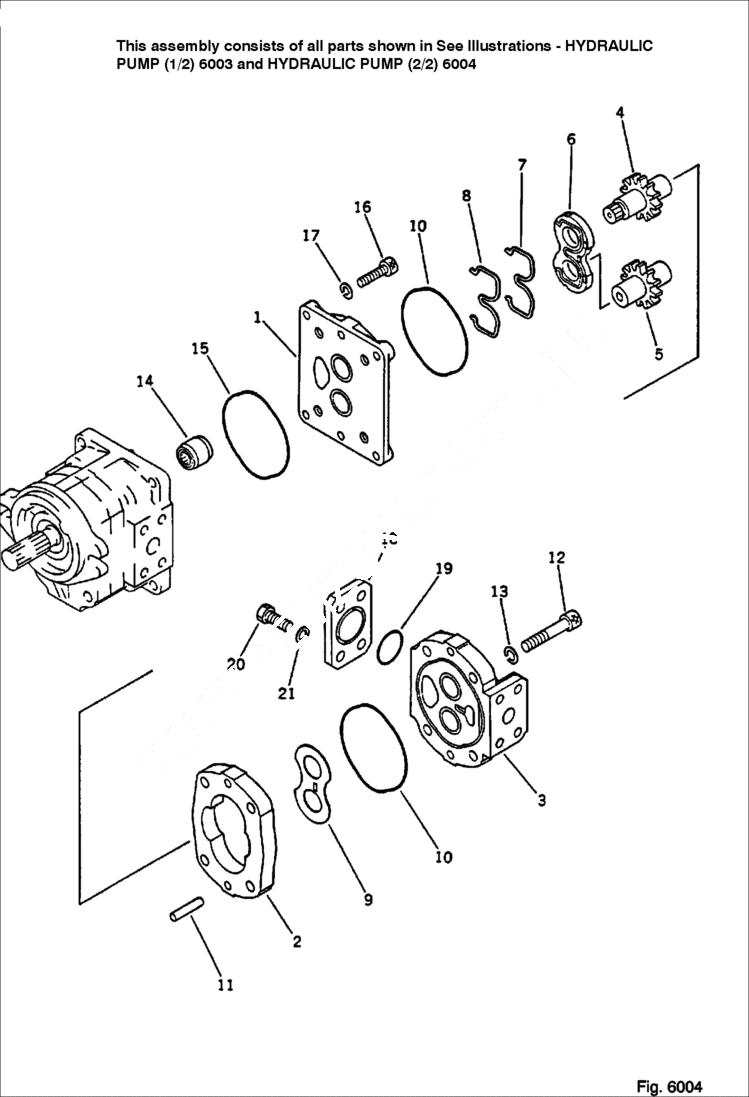

Запчасти Bobcat 56 HYDRAULIC PUMP (2/2) WORK EQUIPMENT CONTROL SYSTEM

1

6640330

PUMP ASY See Illustration HYDRAULIC PUMP (1/2)/ 6003

1

6640311

PUMP ASSY (LAR 6)

1

6640318

BRACKET A

2

6645252

GEAR CASE

3

6640313

COVER

4

6646057

GEAR drive

5

6646059

GEAR driven

6

6640319

SHIELD

7

6640301

SEAL

8

6640317

RING

9

6640320

SHIELD

10

6640300

O-RING

11

6640321

PIN

12

6637055

BOLT

13

6637135

WASHER

14

6640316

COUPLING

15

6640300

O-RING

16

6637053

BOLT

17

6637134

WASHER

18

6640304

SHIELD

19

6637356

O-RING

20

6636967

BOLT

21

6637135

WASHER
