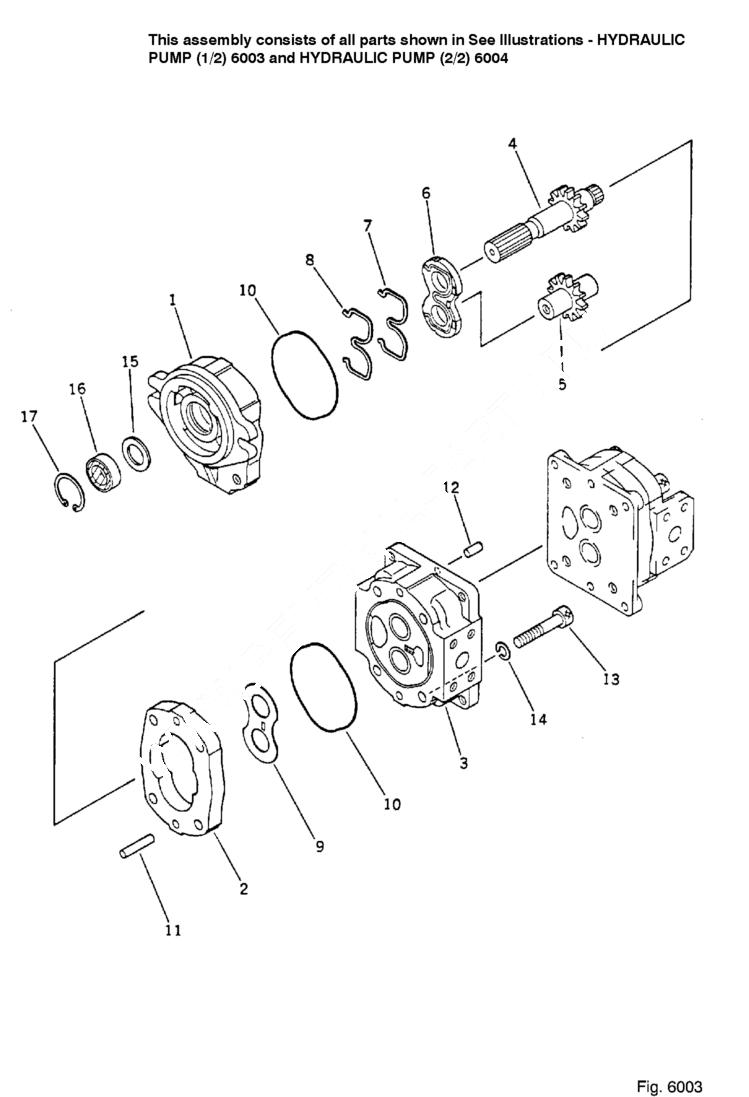

Запчасти Bobcat 56 HYDRAULIC PUMP (1/2) WORK EQUIPMENT CONTROL SYSTEM

1

6640330

PUMP ASY See Illustration HYDRAULIC PUMP (2/2)/ 6004

1

6640310

PUMP ASSY (LAR 6)

1

6640312

BRACKET A

2

6645252

GEAR CASE

3

6640313

COVER

4

6646057

GEAR drive

5

6646059

GEAR driven

6

6640319

SHIELD plate, side

7

6640301

SEAL

8

6640317

RING back-up

9

6640320

SHIELD plate, side

10

6640300

O-RING

11

6640321

PIN

12

6640315

PIN

13

6637055

BOLT

14

6637135

WASHER

15

6640303

SHIELD plate

16

6640293

SEAL, OIL

17

6637231

RING, SNAP
