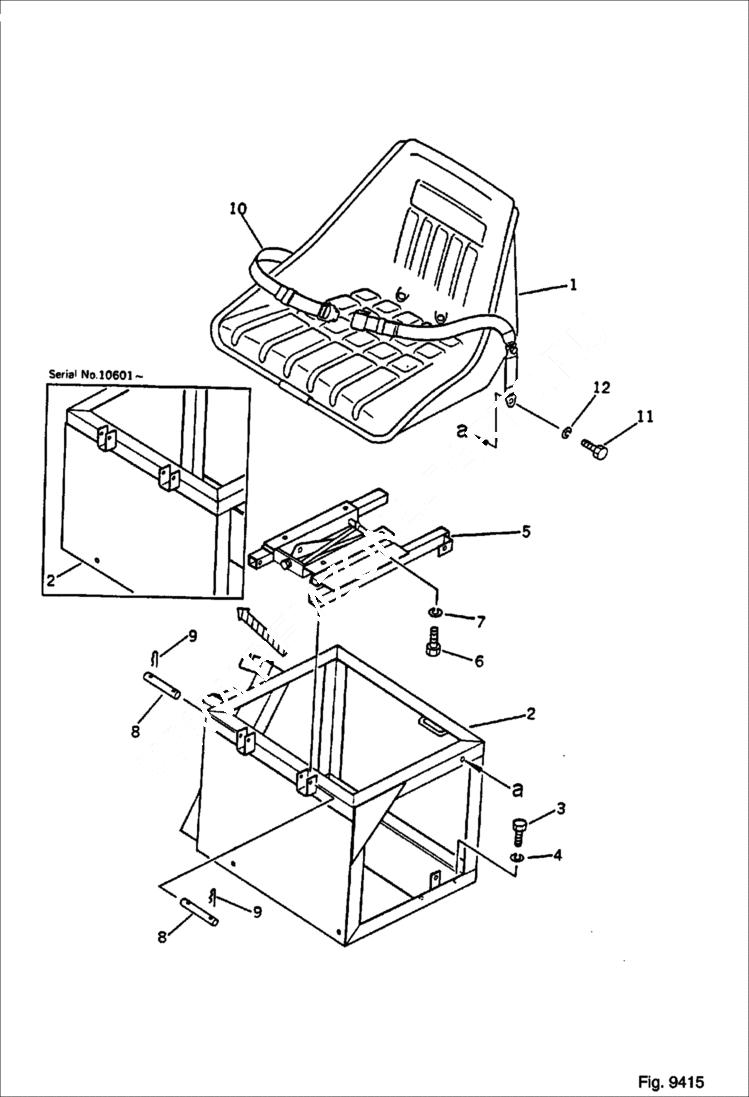

Запчасти Bobcat 56 OPERATORS SEAT REVOLVING FRAME AND CAB

1

6638017

SEAT

2

6642292

BRACKET Komatsu S/N 10401-10600

2

6638020

BRACKET Komatsu S/N 10601 & Abv.

3

6636966

BOLT Komatsu S/N 10401-10600

3

6636957

BOLT Komatsu S/N 10601 & Abv.

4

6637129

WASHER spring - Komatsu S/N 10401-10600

4

6637134

WASHER spring - Komatsu S/N 10601 & Abv.

5

6638021

CUSHION ASSEMBLY

6

6642002

BOLT

7

6637128

WASHER spring

8

6638018

PIN

9

6637212

PIN snap

10

6636158

BELT ASSY seat

11

6636966

BOLT

12

6637135

WASHER spring
