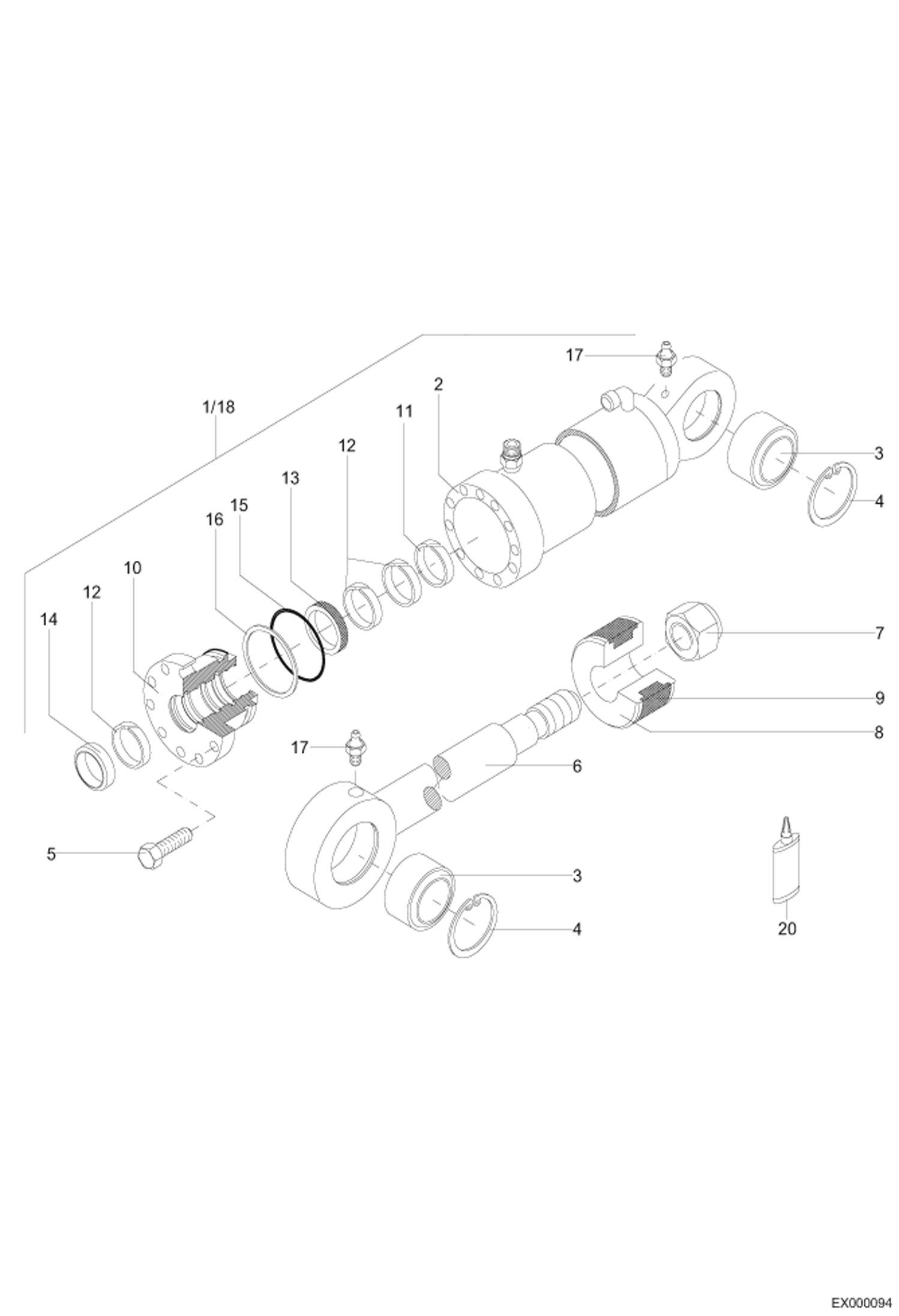

Запчасти Bobcat 444 INTERMEDIATE BOOM - ARTICULATED BOOM CYLINDER Z 90/50 HYDRAULIC INSTALLATION

1

6500782000

HYDRAULIC CYLINDER Includes Ref. 2 to 16

2

6500782003

CYLINDER BODY

3

1950000814

LINKAGE BEARING

4

1456622363

CIRCLIP

5

1017341424

BOLT

6

6500760011

PISTON ROD

7

1212251832

NUT Secure with SCHAEFFLOCK 2070

8

0500760015

PISTON

9

1634935661

PISTON SEAL

10

0500782017

CYLINDER HEAD

11

5060502050

ROD SEAL

12

5060501050

ROAD SEAL

13

1965956565

ROD SEAL

14

1974955050

SCRAPER RING

15

1971958509

O-RING

16

1966960908

BACK UP RING

17

1607003006

GREASE NIPPLE

18

1976999084

SEAL KIT Includes Ref. 7 + 9 + 11 to 16

20

GLUE NLA - Was MCS001036A - A
