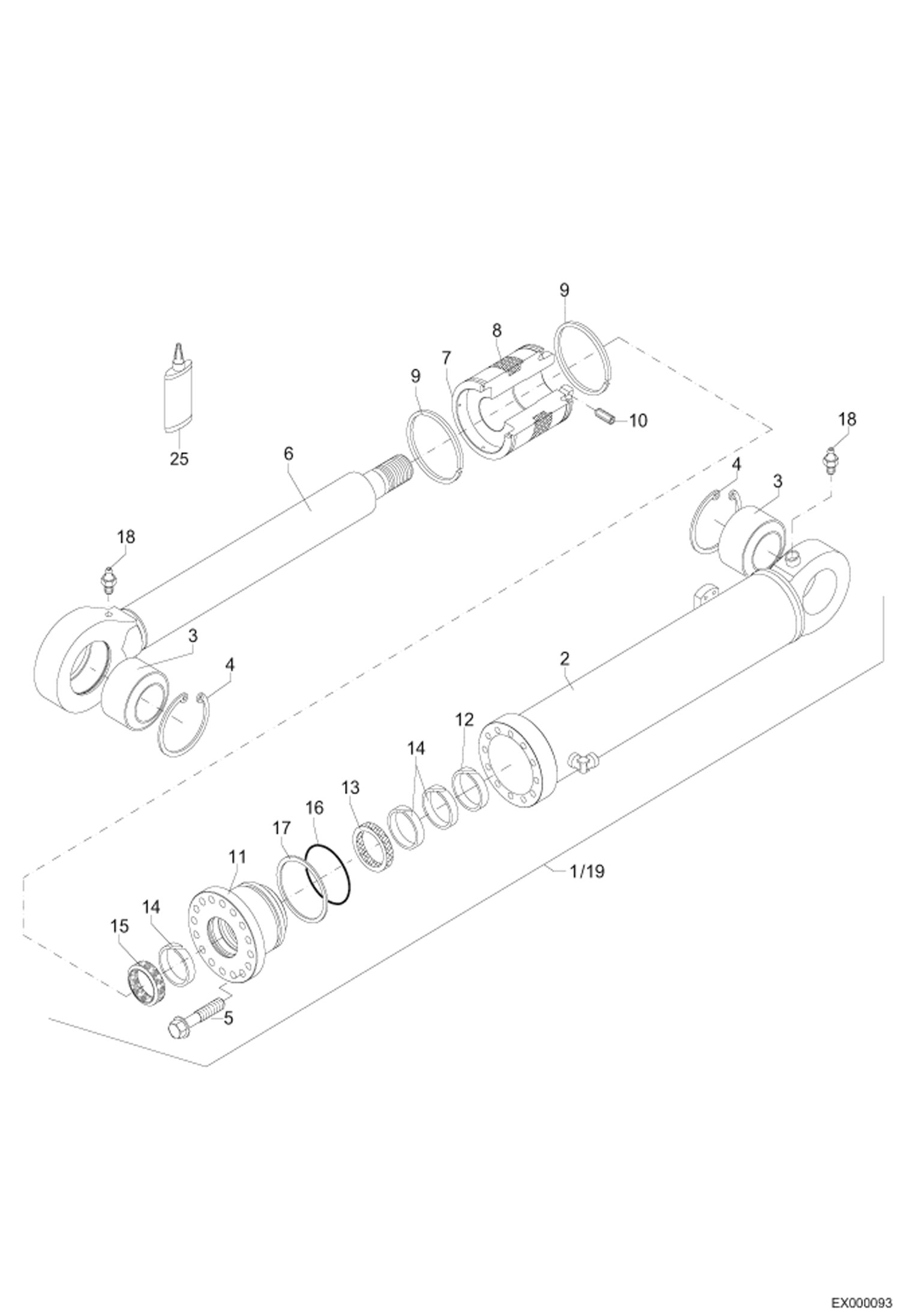

Запчасти Bobcat 444 BOOM - ARTICULATED BOOM HYDRAULIC CYLINDER Z 120/70 HYDRAULIC INSTALLATION

1

6501839000

HYDRAULIC CYLINDER Includes Ref. 2 to 17

2

6501839003

CYLINDER BODY

3

1950000866

LINKAGE

4

1456622873

CIRCLIP

5

1017370230

BOLT

6

6501839011

CYLINDER ROD Secure with SCHAEFFLOCK 2070

7

0501839015

PISTON

8

1634934120

PISTON SEAL

9

5074609265

SEGMENT

10

1135341423

STUD

11

0501839017

CYLINDER HEAD

12

5060502070

GUIDING RING

13

1965956785

SEAL

14

5060507070

GUIDING RING

15

1974955070

SCRAPER RING

16

1970960869

O-RING

17

1969956112

SPIRAL RING

18

1607003006

GREASE NIPPLE

19

1976999648

SEAL KIT Includes Ref. 8 + 9 + 12 to 17

25

GLUE NLA - Was MCS001036A - A
